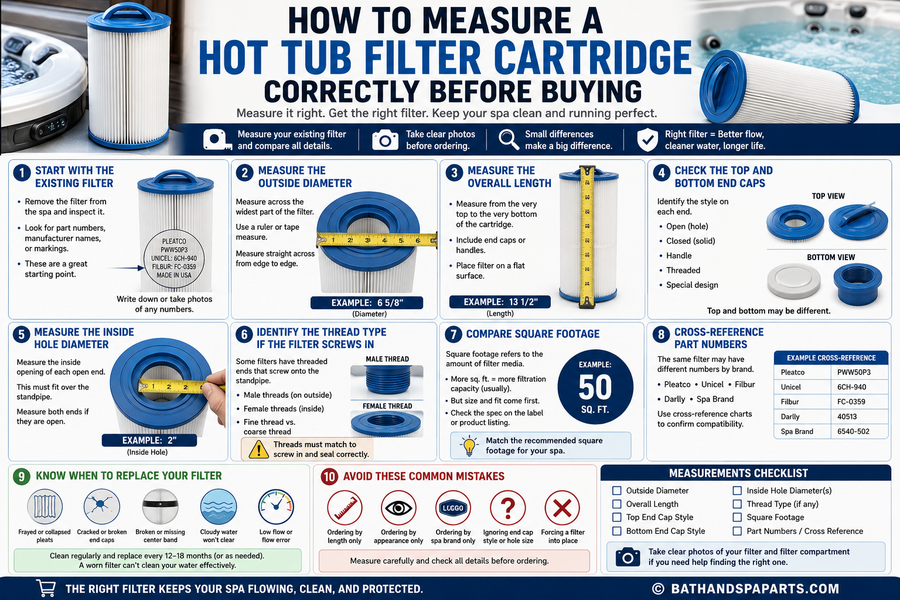

Replacing a hot tub filter cartridge seems simple until you realize how many filters look almost identical. Two cartridges may have the same general shape but differ slightly in length, diameter, thread style, hole size, end cap design, or square footage. Ordering the wrong filter can lead to poor fit, weak water flow, dirty water, or a filter that simply will not install correctly.
The best way to find the right replacement spa filter is to measure your existing cartridge carefully and compare the details before buying. Even if you have a part number, taking a few measurements can help confirm that the replacement filter will fit your hot tub properly.
1. Start With The Existing Filter Cartridge
The easiest way to identify a replacement filter is to remove the current cartridge from your hot tub and inspect it carefully. Many filters have part numbers, manufacturer names, or molded markings printed on the end cap or band.
- Part numbers may be printed on the end cap, center band, or filter label.
- Manufacturer names may include brands such as Pleatco, Unicel, Filbur, Darlly, or other filter manufacturers.
- Spa brand numbers may be different from the actual filter manufacturer’s part number.
- Old filters may be swollen, compressed, or worn, so measurements should be taken carefully.
Solution: Remove the filter, rinse it off, and take clear photos of the top, bottom, side, and any markings. If the part number is readable, use it as a starting point, but still confirm the measurements before ordering.
2. Measure The Outside Diameter
The outside diameter is the measurement across the widest part of the filter cartridge. This is one of the most important measurements because the filter must fit inside the filter housing or filter compartment.
- Measure across the filter from one outside edge to the opposite outside edge.
- Use the widest point of the pleated filter body, not just the end cap.
- Round to the nearest common size when comparing replacement filters.
- Do not guess by appearance because many filters differ by only a fraction of an inch.
Solution: Use a ruler or tape measure to measure straight across the filter’s outside diameter. If possible, measure in more than one place to make sure the filter has not become distorted from age or use.
3. Measure The Overall Length
The overall length is the measurement from one end of the filter cartridge to the other. This measurement is especially important because a filter that is too long may not fit in the compartment, while a filter that is too short may not seal or stay in place correctly.
- Measure from end cap to end cap across the full height of the cartridge.
- Include handles or molded ends only if they are part of the total installed height.
- Compare the exact length to the replacement filter specifications.
- Old cartridges may shrink, swell, or become slightly misshapen over time.
Solution: Place the filter on a flat surface and measure from the very top to the very bottom. Record the measurement in inches and compare it with the product listing before ordering.
4. Check The Top And Bottom End Caps
The end cap design is one of the biggest reasons filters get ordered incorrectly. A filter may have an open hole, closed cap, handle, threaded fitting, cone adapter, or other style on either end.
- Open end caps have a hole that allows water to pass through the center core.
- Closed end caps seal one end of the cartridge.
- Handle tops make it easier to remove the filter from the spa.
- Threaded ends screw into the filter standpipe or filter housing.
- Special end caps may be specific to certain spa brands or filter systems.
Solution: Look at both ends of the cartridge and identify whether each side is open, closed, threaded, handled, or shaped differently. The replacement filter must match the end cap style your spa requires.
5. Measure The Inside Hole Diameter
If your filter has an open end, you need to measure the inside hole diameter. This opening must fit over the standpipe or connection inside the filter housing.
- Measure the inside opening from one inner edge to the opposite inner edge.
- Do not measure the outside of the end cap when trying to identify the hole size.
- Small differences matter because the filter needs to seal correctly.
- Both ends may be different on some filter cartridges.
Solution: Measure the inside diameter of each open hole. If both ends are open, confirm whether the openings are the same size or different sizes before ordering.
6. Identify The Thread Type If The Filter Screws In
Some hot tub filters screw onto a threaded standpipe. These filters must match the correct thread size and style. A filter with the wrong thread may not screw in, may leak around the connection, or may damage the fitting.
- Male threads are on the filter cartridge itself.
- Female threads are inside the opening of the filter cartridge.
- Fine threads and coarse threads are not always interchangeable.
- Threaded filters should screw in smoothly without forcing.
Solution: Check whether your filter has male or female threads and compare the thread size to the replacement filter. Never force a threaded filter into place. If it does not start easily, it may be the wrong cartridge.
7. Compare Square Footage Carefully
Filter square footage refers to the amount of filter media in the cartridge. A higher square footage filter can usually trap more debris, but it still needs to match the correct size and fit for your spa.
- Common spa filters may range from smaller cartridges to larger high-capacity filters.
- More pleats often mean more filter media, but fit still comes first.
- Incorrect square footage can affect water flow and filtration performance.
- Spa manufacturers design filtration systems for a specific cartridge size and flow rate.
Solution: Use square footage as a matching detail after confirming physical dimensions and end cap style. Do not choose a filter only because it has more square footage if it does not match the required cartridge design.
8. Cross-Reference Filter Part Numbers
Many spa filters have equivalent part numbers across different brands. For example, the same cartridge may have a Pleatco number, Unicel number, Filbur number, Darlly number, and a spa manufacturer number.
- Cross-reference numbers help compare compatible filters from different brands.
- Spa brand part numbers may not match the filter manufacturer number.
- Old numbers may be discontinued or replaced by updated part numbers.
- Similar numbers do not always mean the filters are the same.
Solution: Use cross-reference numbers to confirm compatible options, but still compare dimensions, end caps, hole size, and thread style before purchasing.
9. Know When Your Filter Should Be Replaced
Even the correct filter cartridge will eventually wear out. A worn filter may look usable but can restrict water flow, allow debris to pass through, or cause your spa to work harder than necessary.
- Frayed or collapsed pleats reduce filtration performance.
- Cracked end caps can prevent the filter from sealing properly.
- Broken bands may allow the pleats to spread apart or deform.
- Persistent cloudy water may indicate the filter is no longer cleaning effectively.
- Flow errors can happen when a filter is clogged or too old.
Solution: Clean your filter regularly and replace it when the pleats are damaged, the end caps are cracked, the cartridge no longer rinses clean, or the spa continues having water quality or flow problems.
10. Avoid These Common Filter Buying Mistakes
Most incorrect filter orders happen because only one detail was checked. A filter may match the length but have the wrong diameter, or it may match the diameter but have the wrong end cap or thread style.
- Ordering by length only can lead to the wrong diameter or connection type.
- Ordering by spa brand only may not be enough because the same brand may use several filter styles.
- Ignoring the end caps can result in a filter that will not fit the housing.
- Assuming all part numbers are interchangeable can lead to ordering a similar but incorrect cartridge.
- Forcing a filter into place can damage the filter, standpipe, or filter housing.
Solution: Confirm all major details before ordering: outside diameter, overall length, top end cap, bottom end cap, inside hole size, thread style, and part number cross-reference.
Key Takeaways
- Do not choose a spa filter by appearance alone. Many cartridges look similar but differ in diameter, length, hole size, thread style, or end cap design.
- Measure the outside diameter and overall length. These two measurements help narrow down the correct replacement filter.
- Match the end caps carefully. Open, closed, handled, threaded, and specialty end caps must match what your spa requires.
- Check the inside hole size and thread type. These details determine whether the filter will fit the standpipe or filter housing correctly.
- Use part numbers and measurements together. Cross-reference numbers are helpful, but measurements confirm the fit.
Finding the right hot tub filter cartridge is much easier when you measure carefully and compare all of the important details. Start with the existing filter, then confirm the outside diameter, overall length, end cap style, inside hole size, thread type, square footage, and any part numbers printed on the cartridge.
If you are unsure which replacement filter fits your spa, take clear photos of the old cartridge, both end caps, any printed numbers, and the filter compartment. Those details can help identify the correct cartridge and keep your hot tub water clean, clear, and flowing properly.
