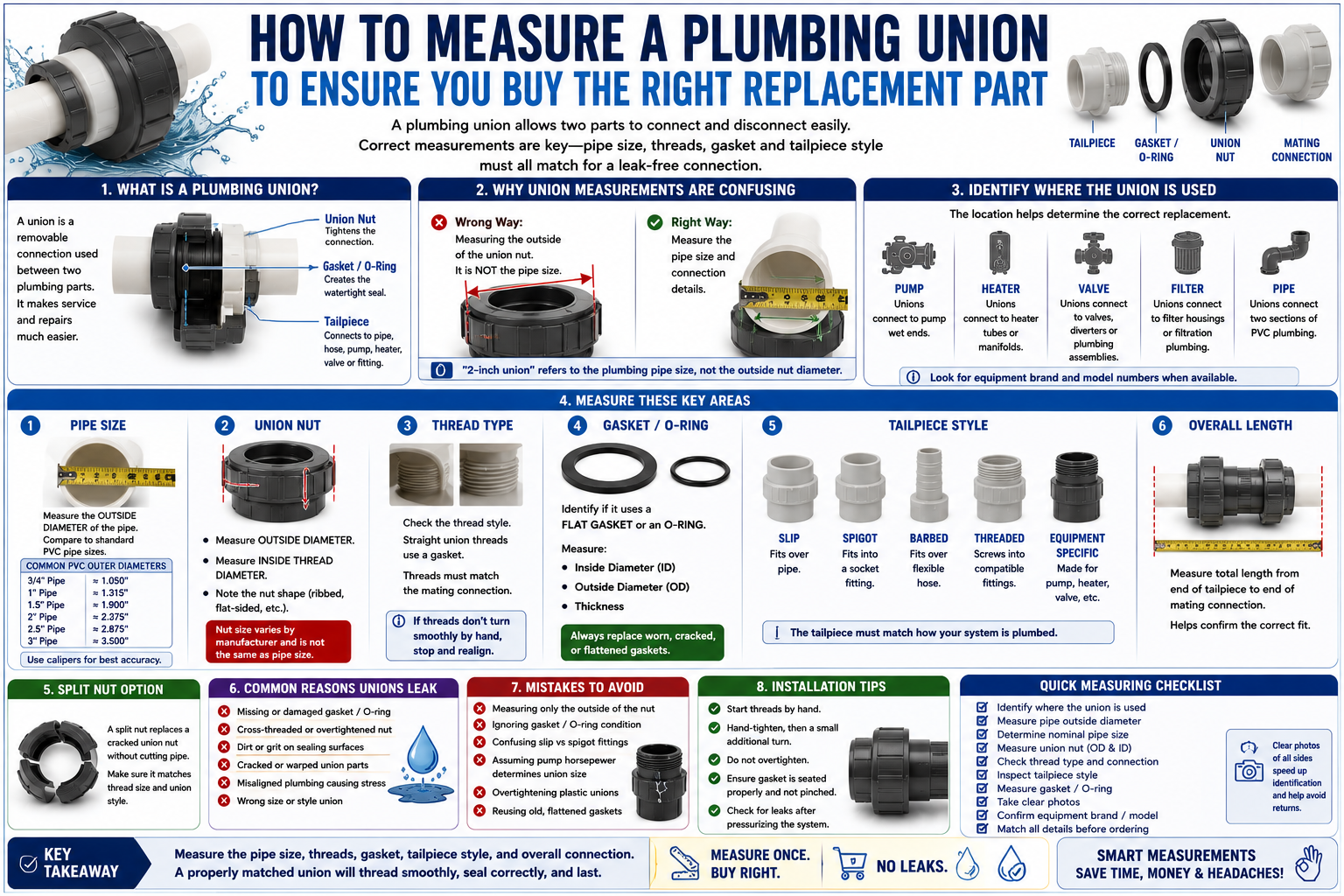

Plumbing unions are small parts, but they are extremely important in hot tubs, spas, jetted tubs, and pool equipment. A union allows pumps, heaters, filters, valves, control systems, and plumbing components to be connected and disconnected without cutting pipe. When a union cracks, leaks, warps, strips, or goes missing, finding the correct replacement becomes very important.
The challenge is that plumbing unions can be confusing to measure. A 2-inch union does not always measure exactly 2 inches across the outside. The size usually refers to the plumbing pipe size, not the outside diameter of the nut, threads, or tailpiece. That is why many people order the wrong part when they only measure the visible union nut or guess based on appearance.
To buy the right replacement union, you need to identify the union size, connection type, thread style, gasket or O-ring design, tailpiece style, and whether the union is used on a pump, heater, valve, filter, or control system. Taking a few careful measurements before ordering can prevent leaks, returns, delays, and frustrating installation problems.
1. What Is A Plumbing Union?
A plumbing union is a removable connection used between two plumbing parts. It usually includes a union nut, a tailpiece, a gasket or O-ring, and a threaded mating connection. The nut tightens the two sides together while the gasket creates a watertight seal.
- The union nut tightens the connection.
- The tailpiece connects to pipe, hose, a pump, heater, valve, or fitting.
- The gasket or O-ring creates the seal.
- The threads pull the parts together when tightened.
Why it matters: If one part of the union does not match, the connection may not seal properly even if the size looks close.
2. Why Union Measurements Are Confusing
Union sizing is confusing because the labeled size usually refers to the plumbing size, not the outside measurement of the union nut. For example, a 2-inch union may have a nut that measures much larger than 2 inches across. A 1.5-inch union may also look larger than expected because the nut, threads, and gasket area must fit around the pipe connection.
- Pipe size is not the same as nut diameter.
- Outside diameter can be misleading.
- Different brands may use different nut shapes.
- Thread style and gasket design matter as much as size.
Helpful tip: Never order a union only because the outside of the nut looks similar. Measure the pipe size, sealing surface, and thread connection before buying.
3. Identify Where The Union Is Used
Before measuring, identify what the union connects to. A pump union, heater union, valve union, filter union, and pipe union may all look similar, but they may use different tailpieces, gaskets, threads, or connection styles.
- Pump unions connect to pump wet ends.
- Heater unions connect to heater tubes or heater manifolds.
- Valve unions connect to valves, diverters, or plumbing assemblies.
- Filter unions connect to filter housings or filtration plumbing.
- Pipe unions connect two sections of PVC plumbing.
Helpful tip: If the union is attached to equipment, look for the equipment brand and model number. That information can help confirm the correct replacement.
4. Measure The Pipe Size First
The pipe size is one of the most important clues. Most spa plumbing uses common sizes such as 3/4 inch, 1 inch, 1.5 inch, 2 inch, or sometimes larger. However, the actual outside diameter of PVC pipe is larger than the nominal pipe size.
For example, a common 1.5-inch PVC pipe has an outside diameter of about 1.9 inches, while a common 2-inch PVC pipe has an outside diameter of about 2.375 inches. This is why measuring the outside of the pipe and comparing it to nominal pipe size is important.
- Measure the outside diameter of the pipe.
- Compare it to standard PVC pipe sizes.
- Do not assume the pipe size from the union nut.
- Use calipers when possible for better accuracy.
Helpful tip: If your pipe measures close to 1.9 inches outside diameter, it is commonly referred to as 1.5-inch pipe. If it measures close to 2.375 inches outside diameter, it is commonly referred to as 2-inch pipe.
5. Measure The Union Nut Carefully
The union nut is the large threaded ring that tightens the union together. Measuring the nut can help identify the part, but it should not be the only measurement you use. Different manufacturers may make nuts with different outside diameters even when they fit the same plumbing size.
- Measure the outside diameter of the nut.
- Measure the inside thread opening.
- Count or compare thread style if needed.
- Check whether the nut is flat-sided, ribbed, or brand-specific.
Helpful tip: A union nut may look right but still not thread onto the equipment correctly. Always confirm the thread style and mating connection.
6. Check The Thread Type
Threads are one of the easiest places to make a mistake. Some unions use straight threads that only tighten the nut against a gasket. Others may connect to threaded equipment fittings. The thread size, pitch, and shape must match the part being connected.
- Straight union threads usually rely on a gasket or O-ring.
- Pipe threads may rely on thread engagement and sealant.
- Pump and heater unions may use equipment-specific threads.
- A similar-looking thread may still leak or cross-thread.
Helpful tip: If the nut does not thread smoothly by hand, stop. Forcing it can damage the threads and make the leak worse.
7. Identify The Gasket Or O-Ring Style
Most unions seal with a gasket or O-ring. Some use a flat gasket. Others use an O-ring that sits in a groove. Some pump unions use a specific shaped gasket that only fits that style of tailpiece or equipment connection.
- Flat gaskets sit between two flat sealing surfaces.
- O-rings usually sit in a groove.
- Pump unions may use special gaskets.
- A missing or damaged gasket can cause a leak even with the correct union.
Helpful tip: Always inspect the old gasket. If it is flattened, cracked, stretched, hard, or missing, replace it. Many union leaks are gasket problems, not full union problems.
8. Identify The Tailpiece Style
The tailpiece is the part of the union that connects to the plumbing or equipment. It may be slip/socket, spigot, barb, threaded, or equipment-specific. Choosing the wrong tailpiece style can make installation impossible even if the union size is correct.
- Slip or socket tailpieces accept PVC pipe inside the fitting.
- Spigot tailpieces fit into another fitting like a piece of pipe.
- Barbed tailpieces connect to flexible hose.
- Threaded tailpieces screw into compatible fittings.
- Pump or heater tailpieces may be designed for specific equipment.
Helpful tip: When replacing only one side of a union, match the tailpiece exactly. A different tailpiece style may require cutting and replumbing.
9. Know The Difference Between Slip And Spigot
Slip and spigot are two common plumbing terms that are often confused. A slip fitting has a socket that accepts pipe inside it. A spigot fitting has the same outside diameter as pipe and fits into another fitting.
- Slip/socket: pipe glues into the fitting.
- Spigot: fitting glues into another socket fitting.
- Both may be labeled with the same nominal pipe size.
- They are not interchangeable in every installation.
Helpful tip: If your old union tailpiece fits over the pipe, it is likely slip/socket. If it fits into another fitting, it may be spigot.
10. Measure The Sealing Surface
The sealing surface is where the gasket or O-ring makes contact. This area must match properly for the union to seal. If the gasket sits unevenly, is too small, too large, or does not compress correctly, the union may leak even when hand-tightened.
- Measure the gasket outside diameter.
- Measure the gasket inside diameter.
- Check whether the gasket is flat or round.
- Inspect the sealing face for cracks or warping.
Helpful tip: A union with the correct threads can still leak if the sealing surface or gasket style does not match.
11. Pump Unions Need Extra Attention
Pump unions are especially important because they connect directly to the pump wet end. Many pump unions are sized by the pump inlet and outlet connection, but different wet ends can use different thread styles and gasket designs.
A common mistake is buying a union based only on the pump horsepower. Horsepower does not determine the union size. Two pumps with the same horsepower can use different plumbing connections.
- Check the pump brand and wet end model.
- Measure the inlet and outlet plumbing.
- Match the union thread to the wet end.
- Replace the gasket when replacing the union.
Helpful tip: If the pump union leaks at the wet end, inspect the gasket and sealing face before assuming the entire pump is bad.
12. Heater Unions Also Require Exact Matching
Heater unions connect plumbing to a heater tube, heater manifold, or control pack. Because heaters can use specific tube diameters, tailpieces, split nuts, gaskets, or sensors nearby, exact fit is important.
- Match heater tube diameter.
- Match union nut thread style.
- Use the correct gasket or O-ring.
- Avoid stressing the heater tube during installation.
Helpful tip: If replacing a heater, new unions or gaskets may be included. If not, check whether your old unions are still in good condition before reusing them.
13. Split Nuts Can Save Time In Some Repairs
A split nut is a two-piece replacement nut that can be installed around existing plumbing without cutting the pipe. Split nuts are often used when the original union nut cracks but the glued tailpiece is still in place and usable.
- Split nuts can replace cracked union nuts.
- They may avoid cutting glued plumbing.
- They must match thread size and union style.
- They do not fix damaged sealing surfaces or bad gaskets.
Helpful tip: Split nuts are useful when only the nut is broken. If the tailpiece, gasket seat, or pipe connection is damaged, a full union repair may be needed.
14. Take Photos Before You Remove Anything
Photos are one of the best tools for finding the correct replacement part. Take pictures before removing the union, after loosening the nut, and after separating the connection. Include a tape measure or ruler in the photo when possible.
- Photograph the complete union.
- Photograph the nut, gasket, and tailpiece.
- Photograph the equipment label.
- Photograph pipe size and measuring points.
- Photograph how the parts fit together.
Helpful tip: Clear photos from multiple angles can help identify the correct union faster than a single measurement alone.
15. Common Reasons Unions Leak
A leaking union does not always mean the entire union is wrong or broken. Many leaks come from simple installation or gasket issues. Before replacing everything, inspect the connection carefully.
- Missing gasket or O-ring.
- Flattened, cracked, or hardened gasket.
- Cross-threaded union nut.
- Dirt or grit on the sealing surface.
- Overtightened or warped plastic parts.
- Misaligned plumbing pulling the union sideways.
Helpful tip: Plastic unions are usually designed to seal by gasket compression, not brute force. Hand-tight plus a small careful adjustment is often better than overtightening.
16. Do Not Overtighten Plastic Unions
Overtightening is one of the most common causes of cracked union nuts and distorted gaskets. Because unions are usually plastic, excessive force can warp the nut, damage threads, pinch the gasket, or crack the fitting.
- Overtightening can crack the nut.
- Too much force can distort the gasket.
- Cross-threading can permanently damage the connection.
- Misalignment can create leaks even when tight.
Helpful tip: Start threads by hand and make sure the nut turns smoothly. If it binds immediately, back it off and realign the connection.
17. What To Match Before Ordering A Replacement Union
Before ordering, gather as much information as possible. The best replacement match comes from combining measurements, photos, equipment details, and connection style.
- Nominal pipe size.
- Actual pipe outside diameter.
- Union nut inside thread measurement.
- Union nut outside diameter.
- Thread type and thread pitch, if possible.
- Gasket or O-ring size and style.
- Tailpiece type: slip, spigot, barb, threaded, or equipment-specific.
- Equipment brand and model.
- Whether it is used on a pump, heater, filter, valve, or plumbing line.
- Photos of the old part from multiple angles.
Helpful tip: If you cannot identify the union with confidence, do not guess. A wrong union can waste time and may require cutting plumbing again.
Quick Plumbing Union Measuring Checklist
- Turn off power before working near spa equipment.
- Relieve pressure and drain water below the union if needed.
- Identify where the union is used: pump, heater, valve, filter, or pipe.
- Measure the outside diameter of the pipe.
- Identify the nominal pipe size.
- Measure the union nut outside diameter.
- Measure the union nut inside thread opening.
- Check whether the tailpiece is slip, spigot, barb, threaded, or equipment-specific.
- Inspect the gasket or O-ring style.
- Check the sealing surface for cracks, warping, or debris.
- Photograph all parts before removal.
- Match the union by size, thread, gasket, and connection style before ordering.
This checklist can help you avoid one of the most common plumbing repair mistakes: buying a union that looks right but does not actually fit.
Common Plumbing Union Mistakes To Avoid
- Measuring only the outside of the nut. Union size usually refers to pipe size, not nut diameter.
- Forgetting the gasket. The right nut can still leak with the wrong gasket or missing O-ring.
- Confusing slip and spigot fittings. These connection styles are not the same.
- Assuming pump horsepower determines union size. It does not. Match the wet end connection.
- Cross-threading the nut. If it does not turn smoothly by hand, stop and realign it.
- Overtightening plastic unions. Too much force can crack the nut or distort the gasket.
- Reusing old flattened gaskets. A new gasket is often the difference between a dry repair and a slow drip.
Avoiding these mistakes can save time, reduce leaks, and help your repair go much more smoothly.
Key Takeaways
- Union size usually refers to pipe size, not the outside diameter of the nut. Measure the pipe and compare it to standard nominal PVC sizes.
- The gasket or O-ring matters. A union will not seal correctly if the sealing surface or gasket style is wrong.
- Tailpiece style must match the repair. Slip, spigot, barb, threaded, and equipment-specific tailpieces are not interchangeable in every installation.
- Pump and heater unions require careful matching. Match the equipment connection, not just the pipe size or pump horsepower.
- Photos and measurements prevent mistakes. Take pictures from multiple angles and measure before ordering.
Measuring a plumbing union correctly is about more than checking the biggest visible part. You need to identify the pipe size, thread style, tailpiece connection, gasket or O-ring design, and the equipment it connects to. A union that looks close may still leak if one of those details is wrong.
Before buying a replacement union, slow down and measure carefully. Take photos, inspect the old gasket, check whether the tailpiece is slip or spigot, and match the connection to the pump, heater, valve, filter, or plumbing line. The right union should thread smoothly, seal evenly, and restore a leak-free connection without forcing the parts together.
