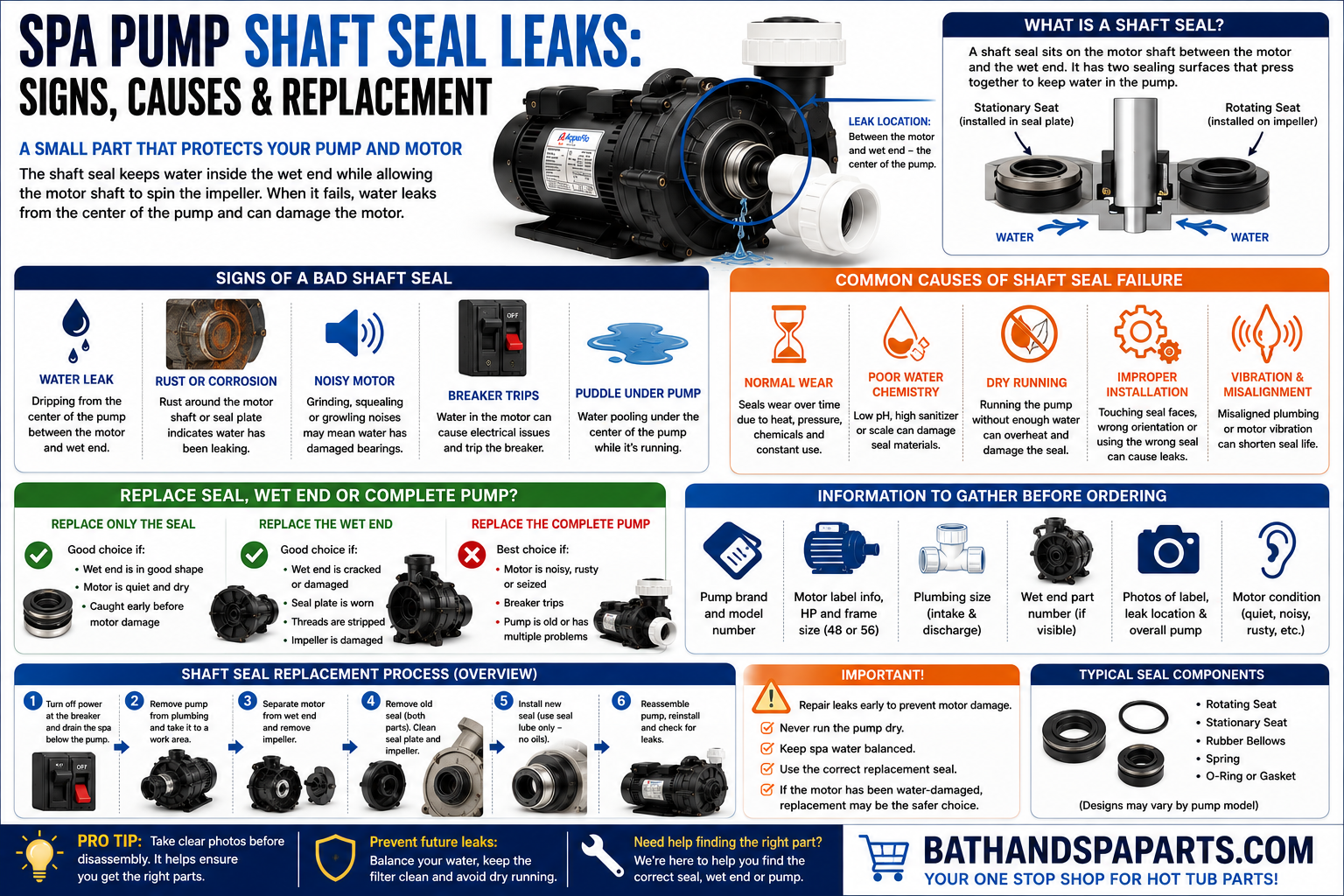

A spa pump shaft seal is a small part with a very important job. It sits between the wet end and motor shaft, helping keep water inside the pump while allowing the motor shaft to spin the impeller. When the shaft seal fails, water can leak from the center of the pump and eventually damage the motor.
Many hot tub owners first notice a shaft seal problem when they see water dripping underneath the pump, especially between the motor and wet end. At first, the leak may seem minor. Over time, however, that small leak can lead to noisy bearings, rust, electrical problems, breaker trips, or complete pump failure.
Understanding how a spa pump shaft seal works can help you decide whether you need a simple seal replacement, a new wet end, a replacement motor, or a complete spa pump assembly. This guide explains the signs of a leaking shaft seal, why seals fail, and what to check before ordering replacement parts.
What Is A Spa Pump Shaft Seal?
A spa pump is made up of two main sections: the motor and the wet end. The motor provides the power, while the wet end moves the water. The motor shaft extends into the wet end and turns the impeller, which pulls water into the pump and pushes it back through the spa plumbing.
The shaft seal is the part that helps prevent water from leaking along the motor shaft. It creates a seal around the spinning shaft while still allowing the shaft to rotate. Without a working shaft seal, water can escape from the wet end and move toward the motor.
Most spa pump shaft seals have two sealing surfaces that press together. One side is usually installed in the seal plate or wet end, and the other side is installed near the impeller. These surfaces must stay clean, aligned, and undamaged to prevent leaks.
Where Does A Shaft Seal Leak Show Up?
A shaft seal leak usually appears between the motor and the wet end. This is the center area where the water side of the pump connects to the electrical motor. If water is dripping from this location, the shaft seal is one of the first parts to suspect.
You may see water dripping from the bottom center of the pump, running down the motor face, or pooling directly under the connection between the motor and wet end. In some cases, the leak may only appear when the pump is running because the wet end is under pressure.
A shaft seal leak is different from a union leak. A union leak usually comes from the plumbing connection at the pump intake or discharge. A shaft seal leak comes from the center of the pump where the motor shaft enters the wet end.
Finding the exact leak location is important because the repair parts are different. A union leak may only need a gasket or O-ring, while a shaft seal leak usually requires disassembling the pump wet end and replacing the seal.
Common Signs Of A Bad Spa Pump Shaft Seal
The most common sign of a bad shaft seal is water leaking between the motor and wet end. The leak may start as a slow drip and become worse over time. Even a small leak should be taken seriously because it can allow water to reach the motor bearings.
Another warning sign is rust near the motor shaft, seal plate, or front of the motor. Rust can indicate that water has been leaking for some time. If you see rust stains or corrosion, the seal may have already allowed water to contact metal parts.
A noisy pump can also be connected to a shaft seal leak. If water reaches the motor bearings, the bearings may begin to grind, squeal, or growl. Once bearings are damaged, replacing only the shaft seal may not be enough.
A breaker trip can also happen if water reaches electrical components inside the motor. If the pump is leaking and also tripping the breaker, turn off power and have the system inspected before using the spa again.
Why Spa Pump Shaft Seals Fail
Shaft seals can fail for several reasons. One of the most common causes is normal wear. The seal is exposed to heat, water pressure, motor rotation, chemical conditions, and vibration every time the pump runs. Over time, the sealing surfaces can wear down and begin to leak.
Poor water chemistry can also shorten seal life. Low pH, high sanitizer levels, high calcium hardness, and unbalanced water can damage rubber, ceramic, and carbon seal surfaces. Corrosive water can attack metal parts, while scale can interfere with the sealing surfaces.
Running the pump dry can also damage the shaft seal. A dry seal can overheat quickly because it relies on water for cooling and lubrication. Air locks, low water level, closed valves, or clogged plumbing can all contribute to poor water flow and seal damage.
Improper installation is another common cause. Touching the polished seal surfaces, installing the seal backward, using the wrong seal, or forcing parts together can cause a new seal to leak shortly after installation.
Can A Shaft Seal Leak Damage The Motor?
Yes. A leaking shaft seal can damage the spa pump motor if the leak is not repaired quickly. The seal is located directly between the wet end and the motor. When it fails, water can travel toward the motor shaft, bearings, and internal components.
At first, the motor may still run normally. As the leak continues, water can cause rust, bearing noise, electrical issues, or motor failure. A motor that was quiet before may begin making a grinding or growling sound after being exposed to water.
This is why timing matters. If you catch the leak early and the motor is still dry and quiet, replacing the shaft seal may be enough. If the motor is already loud, rusty, seized, or tripping the breaker, replacing only the seal may not solve the problem.
Should You Replace The Shaft Seal Or The Whole Pump?
Replacing only the shaft seal may make sense if the wet end is in good condition and the motor is still quiet, dry, and running properly. This can be a cost-effective repair when the leak is caught early.
A complete pump replacement may be better if the pump is old, the motor is noisy, the wet end is cracked, or the leak has already caused water damage. If the motor bearings are grinding or the pump trips the breaker, replacing only the shaft seal may not fix the deeper issue.
A wet end replacement may be the right choice if the seal leak is combined with a cracked housing, damaged seal plate, stripped threads, broken impeller, or other wet end damage. In that case, the seal may not be the only failed part.
Before deciding, inspect the full pump assembly. Consider the age of the pump, condition of the motor, condition of the wet end, and whether other parts are already showing signs of wear.
Matching The Correct Replacement Shaft Seal
Spa pump shaft seals are not all the same. The correct seal depends on the pump brand, wet end model, motor frame, shaft size, and pump design. Choosing the wrong seal can cause immediate leaks or improper fitment.
Start by identifying the pump manufacturer and model number. This information may be found on the motor label, wet end housing, or pump nameplate. Common spa pump brands include Waterway, Aqua-Flo by Gecko, Balboa, LX, Vico, and others.
If the pump label is missing or unreadable, photos can help. Take clear pictures of the pump label, wet end, seal plate, impeller, plumbing connections, and overall pump layout. The more information you have, the easier it is to match the correct seal.
Also consider whether you need a standard shaft seal or an upgraded seal material. Some pumps may use different seal versions depending on the application, water conditions, or pump model.
What Happens During Shaft Seal Replacement?
Replacing a spa pump shaft seal usually requires removing the pump from the plumbing, separating the wet end from the motor, removing the impeller, and replacing both parts of the seal. This is more involved than replacing a union gasket or drain plug.
The polished seal surfaces must be handled carefully. Oils from your fingers, dirt, scratches, or misalignment can cause the new seal to leak. The seal must be installed in the correct direction and seated properly.
After the pump is reassembled, the spa should be checked for leaks before extended operation. If the new seal leaks right away, the wrong seal may have been used, the seal may have been installed incorrectly, or another wet end component may be damaged.
If you are not comfortable disassembling a pump or working near electrical equipment, it is best to have a qualified spa technician perform the repair.
How Water Chemistry Affects Shaft Seal Life
Balanced water chemistry helps extend the life of spa pump shaft seals. Poor water balance can attack seal materials, create scale buildup, or cause corrosion around the pump and motor.
Low pH can make water corrosive and damage seals, metal parts, and pump components. High pH and high calcium hardness can encourage scale buildup, which can interfere with moving parts and sealing surfaces.
High sanitizer levels can also be hard on rubber and plastic parts over time. While sanitizer is necessary for safe water, consistently over-treating the spa can shorten the life of seals, gaskets, covers, pillows, and other components.
After replacing a shaft seal, check and balance the spa water. Good water maintenance can help protect the new seal and reduce the chance of premature failure.
Information To Gather Before Ordering A Shaft Seal
Before ordering a replacement shaft seal, gather as much information as possible from the existing pump. This helps reduce the chance of ordering the wrong part.
- Pump manufacturer
- Pump model number
- Wet end part number, if visible
- Motor manufacturer and label information
- Horsepower rating
- Motor frame size, such as 48 frame or 56 frame
- Clear photos of the pump label and wet end
- Photos of the leak location
- Whether the motor is quiet, noisy, rusty, seized, or tripping the breaker
If the shaft seal has already been removed, compare it carefully to the replacement. Both sides of the seal must match the original style and dimensions.
Key Takeaways
- A spa pump shaft seal keeps water inside the wet end and away from the motor.
- A shaft seal leak usually appears between the motor and wet end.
- Small seal leaks should be repaired quickly to help prevent motor damage.
- Poor water chemistry, dry running, age, and improper installation can cause shaft seal failure.
- Replacing only the seal may be enough if the motor is still quiet, dry, and working properly.
- A wet end or complete pump may be needed if the motor is noisy, rusty, seized, or water-damaged.
- The correct replacement seal must match the pump brand, wet end, motor frame, and shaft design.
Frequently Asked Questions About Spa Pump Shaft Seals
1. What does a spa pump shaft seal do?
A shaft seal helps keep water inside the pump wet end while allowing the motor shaft to spin the impeller.
2. Where does a shaft seal leak appear?
A shaft seal leak usually appears between the motor and wet end, often as dripping from the center of the pump.
3. Can a leaking shaft seal damage the motor?
Yes. If water reaches the motor bearings or electrical components, it can cause noise, rust, breaker trips, or motor failure.
4. Can I replace only the shaft seal?
Yes, if the wet end is in good condition and the motor is still dry, quiet, and running properly.
5. Why do spa pump shaft seals fail?
Common causes include age, poor water chemistry, dry running, overheating, scale buildup, vibration, or improper installation.
6. How do I know which shaft seal I need?
Use the pump manufacturer, model number, wet end style, motor frame size, horsepower, and photos of the existing pump to match the correct replacement seal.
7. Should I replace the wet end at the same time?
If the wet end is cracked, warped, damaged, or difficult to reseal, replacing the wet end may be better than replacing only the shaft seal.
8. What if the motor is already noisy?
A noisy motor may mean water has already damaged the bearings. In that case, replacing only the shaft seal may not solve the problem.
9. Can poor water chemistry ruin a new shaft seal?
Yes. Corrosive water, high sanitizer levels, or scale-forming water can shorten the life of a new shaft seal.
10. Is shaft seal replacement a DIY repair?
Some experienced spa owners can replace a shaft seal, but the repair requires pump disassembly and careful seal installation. If you are unsure, contact a qualified spa technician.
Final Thoughts
A spa pump shaft seal may be small, but it plays a major role in protecting the motor and keeping the pump leak-free. When the seal starts leaking, the problem should be addressed quickly before water reaches the motor and causes more expensive damage.
If the leak is caught early, replacing the shaft seal may be all that is needed. If the wet end is cracked or the motor has already become noisy, rusty, seized, or electrically damaged, a wet end or complete pump replacement may be the better repair.
