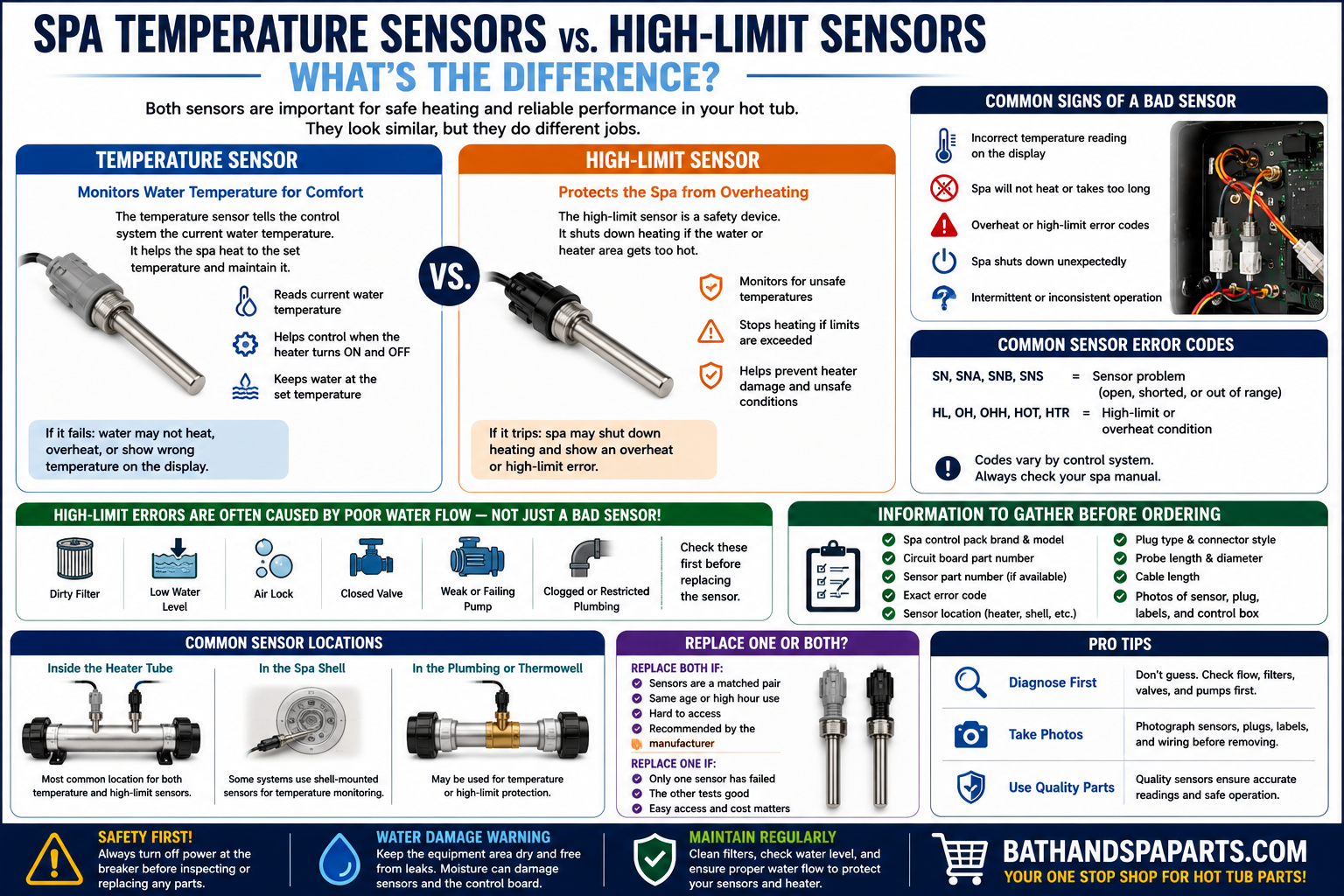

Spa sensors play a major role in keeping your hot tub safe, comfortable, and working properly. They help the control system monitor water temperature, protect the heater, and shut the spa down if unsafe conditions are detected. When a sensor fails or gives an incorrect reading, your spa may stop heating, overheat, display error codes, or refuse to run normally.
Two of the most important sensors in many hot tubs are the temperature sensor and the high-limit sensor. These parts may look similar, and in some systems they are installed near each other, but they do different jobs. Understanding the difference can make troubleshooting much easier.
This guide explains what spa temperature sensors and high-limit sensors do, how they work with the control pack, common symptoms of sensor failure, and what to check before ordering replacement sensors for your hot tub.
What Does A Spa Temperature Sensor Do?
The spa temperature sensor tells the control system the current water temperature. When you set your spa to a desired temperature, the control pack uses the temperature sensor reading to decide when the heater should turn on and when it should shut off.
If the water is below the set temperature, the control system may activate the heater, provided there is proper water flow and no safety fault. Once the sensor reads that the water has reached the set temperature, the control system turns the heater off.
When the temperature sensor is working correctly, the spa heats smoothly and maintains a consistent water temperature. If the sensor reads incorrectly, the spa may heat too much, not heat enough, or display the wrong temperature on the topside panel.
Depending on the spa system, the temperature sensor may be mounted in the heater tube, plumbing, filter area, or spa shell.
What Does A High-Limit Sensor Do?
The high-limit sensor is a safety sensor. Its job is to help protect the spa from overheating. If the system detects that water temperature is too high or the heater area is getting too hot, the high-limit sensor can trigger a shutdown or error code.
High-limit protection is especially important around the heater. If water flow is too low, the heater can get hot faster than the water can carry the heat away. The high-limit sensor helps prevent damage to the heater and helps protect users from unsafe water temperatures.
A high-limit sensor may be installed in the heater tube, attached to the heater assembly, mounted in a thermowell, or located in another area depending on the control system design.
When the high-limit sensor trips, the spa may shut down heating or display an error such as OH, OHH, HL, HTR, HOT, or another warning depending on the control system.
Why These Sensors Are Easy To Confuse
Temperature sensors and high-limit sensors are easy to confuse because they may look similar and may plug into the same circuit board area. Some systems use two similar-looking probes, while others use a sensor set with matching connectors.
In some spa packs, both sensors are installed directly into the heater tube. In other systems, one sensor may be located in the heater and the other may be installed in the spa shell or plumbing.
Some modern control systems use paired sensors that compare readings to monitor temperature and heater safety. In those systems, the control pack may look for agreement between sensors rather than using one sensor only for temperature and another only for high-limit protection.
Because sensor designs vary, it is important to match replacements by control system, part number, plug type, probe length, cable length, and mounting style rather than guessing by appearance alone.
Common Signs Of A Bad Spa Sensor
A bad temperature sensor or high-limit sensor can cause several symptoms. The spa may display an incorrect water temperature, heat past the set temperature, fail to heat, shut down unexpectedly, or show sensor-related error codes.
You may also notice that the topside panel shows a temperature that does not match the actual water temperature. If the display says the water is much hotter or colder than it really is, the temperature sensor may be reading incorrectly.
A high-limit sensor issue may show up as overheating errors even when the water is not actually too hot. However, true low-flow conditions can also trigger high-limit errors, so it is important to check water flow before blaming the sensor.
Sensor problems may also be intermittent. A spa may work normally for a while, then suddenly display an error code, shut off the heater, or behave unpredictably.
Common Sensor Error Codes
Different spa control systems use different error codes, but sensor problems often appear as messages related to temperature, high limit, or sensor mismatch. Common examples may include SN, SNA, SNB, SNS, HL, OH, OHH, HOT, HTR, or similar warnings.
An SN or sensor error may mean that one of the sensors is open, shorted, disconnected, out of range, or giving a reading the control system cannot accept. A high-limit or overheat error may mean the system believes the heater or water temperature is too high.
Not every error code means the sensor itself is bad. A dirty filter, low water level, air lock, closed valve, weak circulation pump, clogged plumbing, or actual overheating condition can all trigger safety-related errors.
Before ordering a sensor, identify the exact error code, spa control system, and conditions when the error appears. This information can help narrow down the cause.
Flow Problems Can Trigger High-Limit Errors
High-limit errors are often connected to poor water flow. If water is not moving through the heater properly, the heater area can become too hot even if the overall spa water is not hot. The high-limit sensor may shut the heater down to prevent damage.
Before replacing a high-limit sensor, check the filter, water level, valves, circulation pump, jet pump low speed, air locks, and plumbing restrictions. A clogged filter is one of the most common causes of poor water flow and heater-related errors.
If the sensor is doing its job and warning you about an actual overheating condition near the heater, replacing the sensor will not solve the real problem. The flow issue must be corrected.
A good troubleshooting step is to clean or remove the filter briefly for testing, confirm proper water movement, and make sure all valves are open before assuming the sensor has failed.
Can A Bad Sensor Stop The Spa From Heating?
Yes. A bad sensor can prevent the spa from heating if the control system receives a reading that is out of range, unsafe, or inconsistent. If the control pack does not trust the temperature reading, it may disable the heater to protect the system.
A sensor that reads too high may make the control system think the water is already hot enough, so the heater may not turn on. A sensor that reads too low or erratically may cause the spa to heat incorrectly or display an error.
High-limit sensor problems can also stop the heater. If the control system believes the heater area is overheating, it may lock out heating until the issue is corrected or the system is reset.
However, no-heat problems can also be caused by a bad heater, poor flow, failed relay, blown fuse, circuit board issue, pressure switch problem, or incorrect settings. The sensor is only one possible cause.
Testing And Diagnosing Spa Sensors
Spa sensors can often be tested with the proper tools and specifications. Many sensors change resistance based on temperature. A technician can compare the sensor reading to a temperature-resistance chart for that specific sensor type.
The sensor plug, cable, and connector should also be inspected. A loose plug, damaged wire, corrosion, moisture, or broken connector can cause sensor errors even if the probe itself is still good.
Some systems use paired sensors, and both sensors may need to be tested or replaced together. If the control system compares two sensor readings and they do not agree, it may display a sensor balance or mismatch error.
Because control systems vary, it is important to use the correct testing information for your spa pack or sensor part number. Guessing can lead to replacing the wrong part.
Matching The Correct Replacement Sensor
Replacement spa sensors must be matched carefully. Sensors vary by manufacturer, plug type, probe diameter, probe length, cable length, thread style, mounting style, and resistance range.
Start by identifying the spa control pack manufacturer and model number. Also look for any part numbers on the existing sensor, sensor cable, control box label, or wiring diagram.
Common spa control brands may use different sensor styles across different systems. A Balboa sensor, Gecko sensor, Hydro-Quip sensor, Jacuzzi sensor, Sundance sensor, or Watkins sensor may not be interchangeable with another system.
If the sensor installs into a heater tube, make sure the probe size, thread style, gasket, and cable length match. If the sensor mounts in the spa shell or plumbing, confirm the mounting style and seal type before ordering.
Should Sensors Be Replaced Individually Or As A Set?
Some spa systems use sensor sets where two sensors are designed to work together. In those cases, replacing both sensors at the same time may be recommended, especially if they are the same age or part of a matched pair.
Other systems use separate temperature and high-limit sensors that can be replaced individually. If only one sensor has clearly failed and the other tests correctly, replacing one may be enough.
When sensors are inexpensive and located in the same heater assembly, some spa owners choose to replace both while the system is open. This can help avoid repeating the repair later.
The best approach depends on the control system, sensor style, access difficulty, age of the sensors, and whether the manufacturer recommends replacing them as a pair.
Information To Gather Before Ordering Sensors
Before ordering replacement spa sensors, gather as much information as possible from your existing system. This helps confirm compatibility and reduces the chance of ordering the wrong part.
- Spa control pack manufacturer and model number
- Circuit board part number, if visible
- Existing sensor part number, if available
- Exact error code shown on the topside panel
- Whether the issue happens during heating, startup, filtration, or pump operation
- Sensor plug type and connector style
- Probe length and diameter
- Cable length
- Mounting location, such as heater tube, spa shell, plumbing, or thermowell
- Photos of the sensor, plug, control box label, wiring diagram, and heater assembly
Clear photos are especially useful because many sensor plugs and probes look similar but are not interchangeable.
Key Takeaways
- A spa temperature sensor tells the control system the current water temperature.
- A high-limit sensor helps protect the spa from overheating.
- Sensor problems can cause no heat, overheating errors, incorrect temperature readings, or error codes.
- High-limit errors are often caused by poor water flow, not just bad sensors.
- Temperature sensors and high-limit sensors may look similar but are not always interchangeable.
- Some systems use matched sensor pairs that should be replaced together.
- Replacement sensors must match the control system, plug type, probe size, cable length, and mounting style.
- Photos and part numbers help prevent ordering the wrong sensor.
Frequently Asked Questions About Spa Temperature And High-Limit Sensors
1. What is the difference between a temperature sensor and a high-limit sensor?
A temperature sensor reads the spa water temperature for normal heating control. A high-limit sensor helps protect the spa from overheating and unsafe heater conditions.
2. Can a bad temperature sensor stop my spa from heating?
Yes. If the sensor gives an incorrect or out-of-range reading, the control system may prevent the heater from turning on.
3. Can a bad high-limit sensor cause overheating errors?
Yes, but poor water flow, dirty filters, air locks, closed valves, and weak pumps can also trigger high-limit or overheat errors.
4. Are spa sensors universal?
No. Sensors must match the control system, plug type, probe size, cable length, mounting style, and sensor specifications.
5. What does an SN error mean?
An SN or sensor error usually means the control system is detecting a sensor problem, such as an open, shorted, disconnected, or out-of-range sensor. Exact meanings vary by system.
6. What does an HL or OH error mean?
HL, OH, or similar errors usually indicate a high-limit or overheat condition. The cause may be a bad sensor, poor flow, dirty filter, air lock, or actual overheating near the heater.
7. Should I replace both sensors at the same time?
Some systems use matched sensor pairs, and replacing both may be recommended. Other systems allow individual sensor replacement if only one has failed.
8. Where are spa sensors located?
Sensors may be located in the heater tube, spa shell, plumbing, thermowell, or filter area depending on the spa control system.
9. Can a dirty filter cause a high-limit error?
Yes. A dirty filter can restrict water flow through the heater and cause the high-limit sensor to detect an unsafe temperature condition.
10. What information do I need before ordering a replacement sensor?
You should gather the control pack model, sensor part number, error code, plug type, probe size, cable length, mounting location, and photos of the sensor and control system.
Final Thoughts
Spa temperature sensors and high-limit sensors are small parts that play a major role in heating, safety, and control system operation. A bad sensor can cause confusing symptoms, including no heat, incorrect temperature readings, overheating errors, or system shutdowns.
Before replacing a sensor, check water flow, filters, valves, pumps, and actual water temperature. Many sensor-related errors are caused by real flow or heating problems rather than the sensor itself.
