Balboa M7 technology is one of the most common heater and sensor designs found in modern hot tubs that use Balboa spa control systems. If you are shopping for a replacement heater, sensor, circuit board, or control pack, you may see the term “M7” listed in product descriptions or printed on the spa pack information.
For many hot tub owners, the name can be confusing. M7 is not a heater brand by itself, and it is not the same thing as the heater element. Instead, Balboa M7 refers to a heater and sensor technology that uses two sensors to monitor temperature and heater conditions. These sensors help the control system manage heating and protect the spa without relying on a traditional pressure switch in many M7 systems.
Understanding Balboa M7 technology can help you choose the correct replacement heater, sensor set, control pack, or circuit board. It can also help explain common error codes, heating problems, and why M7 parts must be matched carefully.

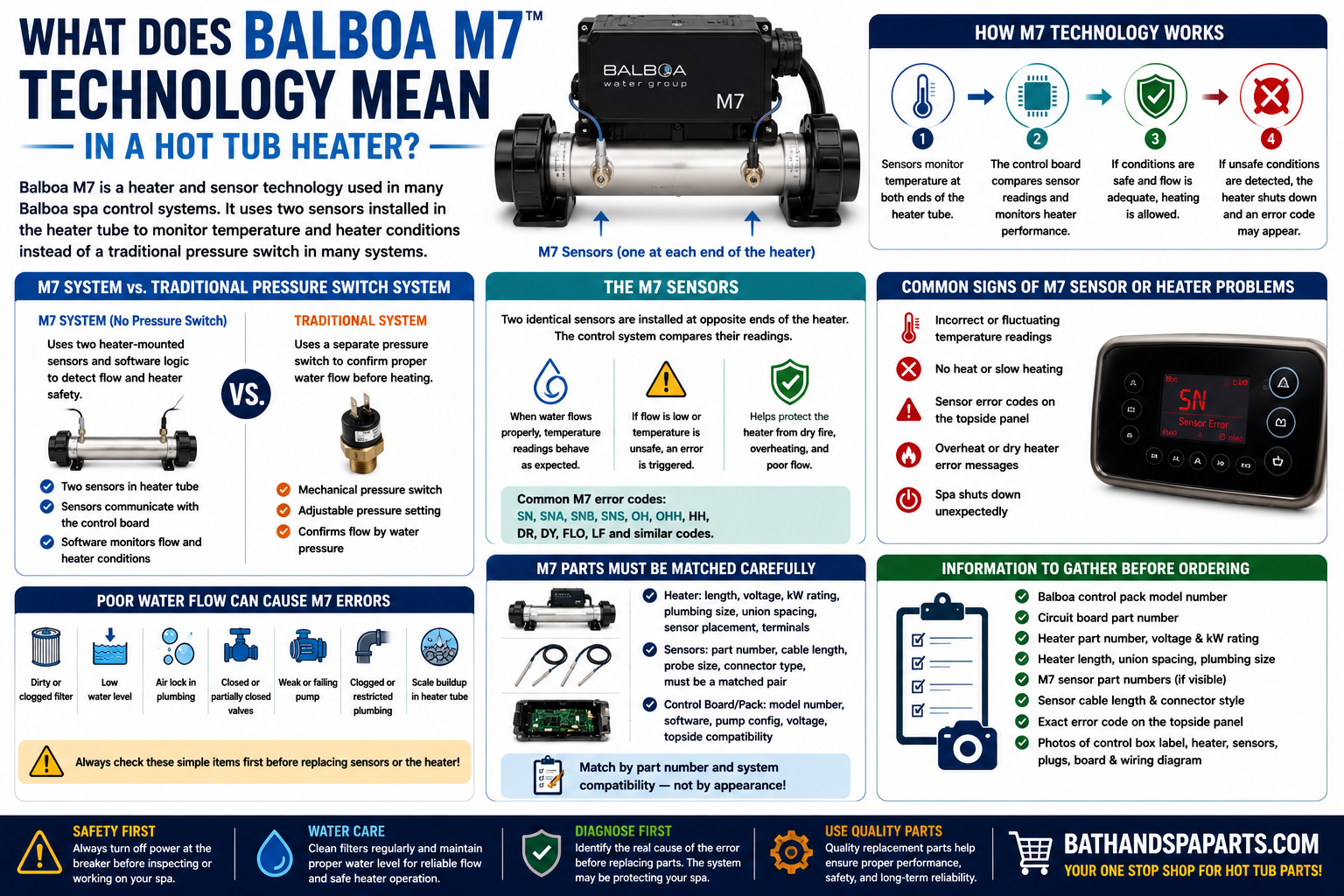

What Is Balboa M7 Technology?
Balboa M7 technology is a spa control and heater sensor design used in many Balboa control systems. Instead of relying only on a separate mechanical pressure switch to verify heater safety, M7 systems use sensors installed in the heater assembly to monitor temperature and conditions inside the heater tube.
In many M7 heater assemblies, two sensors are installed directly into the heater tube, usually one near each end. These sensors communicate with the Balboa circuit board and help the system determine whether the spa is heating correctly and whether water is moving through the heater safely.
The “M7” name is commonly associated with Balboa systems such as VS, GS, EL, GL, and related control pack families. Exact compatibility depends on the control pack, board, heater, and sensor part numbers. Replacement M7 sensors and sensor sets are commonly sold for Balboa M7-style systems.
The main thing to remember is that M7 is a system design. The heater, sensors, circuit board, and software all work together. Because of that, M7 parts should be matched by the correct Balboa part number and system compatibility rather than by appearance alone.
How Is An M7 Heater Different From A Traditional Pressure Switch System?
Many older or traditional spa systems use a pressure switch to help confirm that water is moving through the heater. When the pump creates enough pressure, the pressure switch closes and tells the control system that it is safe to heat.
Balboa M7 systems are different because they commonly use two heater-mounted sensors instead of a traditional external pressure switch. The control board compares sensor information and uses software logic to help monitor water flow and heater operation.
This design can reduce the need for pressure switch adjustment and simplify some heater safety monitoring. Instead of depending on one mechanical pressure switch setting, the control system watches sensor readings and looks for proper heating behavior.
That does not mean flow problems disappear. A dirty filter, low water level, air lock, weak pump, closed valve, or clogged plumbing can still cause heating problems or M7-related error codes. The difference is how the control system detects and reacts to those problems.
What Do The Two M7 Sensors Do?
The two M7 sensors help the control system monitor temperature conditions inside the heater assembly. In many M7 systems, the sensors are identical and are installed at opposite ends of the heater tube. The system compares sensor readings to help determine whether heating and water movement are normal.
When water flows through the heater properly, the temperature readings should behave in a predictable way. If there is not enough water flow, the heater area may warm unevenly or too quickly, and the control system may display an error or shut down heating.
The sensors also help the spa control system monitor water temperature for normal operation. If a sensor reads incorrectly, is disconnected, becomes mismatched, or falls outside the expected range, the spa may display a sensor error and stop heating.
Because both sensors are important to the system, it is common to replace M7 sensors as a matched pair when troubleshooting certain sensor-related issues.
Does M7 Mean The Heater Has No Pressure Switch?
In many Balboa M7 systems, the heater does not use a traditional pressure switch. The control system relies on the M7 sensor design to monitor heater safety and water movement instead.
This is one of the main reasons hot tub owners notice the difference when replacing parts. If your older system used a pressure switch, but your Balboa M7 heater does not have one, that may be normal for that system.
However, spa systems vary. Some control packs may include additional safety devices, different sensor configurations, or manufacturer-specific designs. Do not assume every Balboa heater or every spa control pack is the same just because it uses Balboa parts.
When replacing a heater or control pack, match the original system design. Do not add, remove, or bypass safety components unless the replacement system is designed for that configuration.
Common Balboa M7 Error Codes
Balboa M7 systems may display different error codes depending on the control pack and topside panel. Some common sensor, flow, or heating-related messages may include SN, SNA, SNB, SNS, OH, OHH, HH, DR, DY, FLO, LF, or similar warnings.
Sensor-related messages can appear when one or both sensors are disconnected, shorted, out of range, mismatched, or reading incorrectly. Some M7 sensor listings specifically mention SN-style errors as a common reason for replacement.
Overheat or dry heater messages can appear when the system detects unsafe heater conditions, poor flow, or abnormal temperature behavior inside the heater tube. These codes do not always mean the sensors are bad. The sensors may be warning the control pack about a real water flow problem.
Before replacing sensors, check the filter, water level, valves, pump operation, air locks, and circulation path. Many heating and sensor errors begin with poor water movement rather than failed electronics.
M7 Sensors Vs. Temperature And High-Limit Sensors
In a traditional spa system, you may see separate temperature and high-limit sensors. One sensor may monitor normal water temperature, while another acts as a safety sensor to protect against overheating.
In many Balboa M7 systems, the two heater-mounted sensors work together as part of the control logic. They may be physically similar or identical, and the board compares their readings to help manage heating and safety.
This is why some M7 sensor kits are sold as two-sensor assemblies or matched replacements. Depending on the system, replacing just one sensor may not be the best repair if the sensors are aging together or if the board is detecting a sensor mismatch.
Always verify the exact sensor style, cable length, probe diameter, connector type, and control pack compatibility before ordering. M7 sensors are not universal across every spa system.
Common Signs Of An M7 Sensor Problem
A failing M7 sensor may cause incorrect temperature readings, sensor error codes, no heat, intermittent heating, overheat warnings, or a spa that shuts down unexpectedly. The topside panel may show an error even when the water temperature feels normal.
A sensor problem can also appear after a heater replacement, control board replacement, or wiring disturbance if the sensor plugs are loose, damaged, corroded, or installed incorrectly.
If one sensor reads differently than the other beyond what the control system expects, the spa may display a sensor balance or mismatch error. In these cases, one or both sensors may need testing or replacement.
However, sensor errors should not be diagnosed by the code alone. Poor flow, dirty filters, low water, damaged heater elements, wiring issues, and circuit board problems can create similar symptoms.
Common Signs Of An M7 Heater Problem
An M7 heater problem may show up as no heat, slow heating, breaker trips, dry heater errors, overheating errors, or leaks from the heater assembly. Because the sensors and heater work together, it is important to identify whether the issue is the element, sensors, control board, flow, or the heater tube itself.
If the spa calls for heat but the water does not warm, the heater element may have failed, the board may not be sending power, or the system may be disabling heat because of a sensor or flow error.
If the breaker trips when the heater turns on, the heater element may be shorted or there may be another electrical problem. If the heater tube leaks, the heater assembly, gaskets, unions, or split nuts may need replacement.
If the heater has visible corrosion, leaking, damaged terminals, burned wiring, or a failed element, replacing the complete heater assembly may be better than replacing only the sensors.
Water Flow Still Matters With M7 Systems
Even though M7 systems may not use a traditional pressure switch, proper water flow is still critical. The heater must have enough water moving through it to operate safely. If flow is restricted, the control system may display an error and prevent heating.
Dirty filters are one of the most common causes of flow-related heater problems. A clogged filter can reduce water movement through the heater and cause the system to detect unsafe conditions.
Other common flow issues include low water level, air locks after refilling, closed valves, weak circulation pumps, failing two-speed pump low speed, clogged plumbing, blocked suction fittings, or scale buildup inside the heater tube.
Before replacing M7 sensors or the heater assembly, always check the simple flow-related items first. In many cases, the control system is doing exactly what it should by preventing the heater from running without proper water movement.
Matching A Replacement Balboa M7 Heater
Balboa M7 heaters must be matched carefully. Important details include heater length, voltage, kilowatt rating, plumbing size, union spacing, sensor placement, terminal style, and control pack compatibility.
Common heater ratings may include 4.0kW, 5.5kW, or other ratings depending on the spa system. A higher kilowatt rating is not automatically better. The spa wiring, breaker, circuit board, and control pack must be designed to support the heater load.
The replacement heater also needs to match the physical layout. If the heater tube is too long, too short, or has different union spacing, it may not line up with the existing plumbing without modifications.
If your original heater uses M7 sensors installed in the tube, the replacement must support the correct sensor style and position. Always match by part number or verified system compatibility whenever possible.
Matching Replacement M7 Sensors
Replacement M7 sensors should be matched by control system, part number, cable length, probe diameter, connector type, and mounting style. Some common M7 sensor part numbers and replacement references may include numbers such as 30344, 30382, 32016, and 53605, depending on the system and supplier listing.
Do not assume that any Balboa sensor will work just because it physically fits into the heater tube. The sensor specification and connector must match the board and software expectations.
If your system uses two matching M7 sensors, replacing both sensors together may be recommended, especially if the spa is showing sensor mismatch errors or if both sensors are the same age.
Before ordering, take clear photos of the existing sensors, plugs, circuit board connection points, heater tube, and control box label. These photos can help identify the correct replacement.
Should You Replace The Sensors, Heater, Board, Or Control Pack?
The correct repair depends on the symptom and the condition of the system. If the heater tube is dry, clean, and not leaking, and the only issue is a sensor error, replacing the M7 sensors may be enough.
If the heater element has failed, the spa trips the breaker when heating, or the heater tube is leaking or corroded, a heater replacement may be needed. In some cases, a full heater assembly with sensors may be the best option.
If the board is not sending power to the heater, has visible burn marks, or has damaged sensor circuits, the circuit board may be the problem. If the entire system is obsolete, corroded, or difficult to repair, a complete control pack replacement may be the better long-term solution.
Because M7 systems rely on the heater, sensors, board, and software working together, proper diagnosis is important before ordering parts.
Information To Gather Before Ordering M7 Parts
Before ordering Balboa M7 replacement parts, gather as much information as possible from the existing system. This helps reduce mistakes and makes it easier to match the correct heater, sensor set, circuit board, or control pack.
- Balboa control pack model number
- Circuit board part number
- Heater part number, if visible
- Heater voltage and kilowatt rating
- Heater length and union spacing
- Plumbing size, usually measured by the union size
- Existing M7 sensor part numbers, if visible
- Sensor cable length and connector style
- Exact error code shown on the topside panel
- Whether the spa has flow, dry heater, sensor, or overheat errors
- Photos of the control box label, circuit board, heater, sensors, plugs, wiring diagram, and topside display
Clear photos are especially helpful because Balboa systems may have several labels and part numbers. Not every number printed on a part is the correct ordering number, so multiple photos can help confirm the right replacement.
Key Takeaways
- Balboa M7 technology uses heater-mounted sensors to help monitor temperature, heater conditions, and water flow behavior.
- Many M7 systems use two sensors installed in the heater tube instead of a traditional pressure switch.
- M7 sensors, heaters, circuit boards, and control packs must be matched carefully.
- Sensor errors do not always mean the sensors are bad. Dirty filters, low water, air locks, weak pumps, and flow restrictions can also cause problems.
- M7 replacement heaters must match voltage, kilowatt rating, plumbing size, union spacing, sensor placement, and control pack compatibility.
- M7 sensors may need to be replaced as a pair, depending on the system and error code.
- Photos of labels, sensors, plugs, heater tubes, and circuit boards help prevent ordering the wrong part.
Frequently Asked Questions About Balboa M7 Technology
1. What does Balboa M7 mean?
Balboa M7 refers to a heater and sensor technology used in many Balboa spa control systems. It commonly uses two sensors in the heater tube to monitor temperature and heater conditions.
2. Does an M7 heater use a pressure switch?
Many M7 systems do not use a traditional pressure switch. Instead, the control system uses the M7 sensors and software to monitor heater operation and water flow behavior.
3. Are both M7 sensors the same?
In many Balboa M7 systems, the two sensors are identical and work together. Always confirm by control pack model and part number before ordering replacements.
4. Can a bad M7 sensor stop my spa from heating?
Yes. If the control system detects a sensor fault, mismatch, or unsafe reading, it may disable heating.
5. What error codes are common with M7 sensor problems?
Possible sensor or heater-related codes may include SN, SNA, SNB, SNS, OH, OHH, DR, DY, FLO, LF, or similar messages depending on the control system.
6. Should I replace both M7 sensors at the same time?
In many cases, replacing both sensors together is a good idea, especially if the system uses a matched pair or is showing sensor balance or mismatch errors.
7. Can dirty filters cause M7 errors?
Yes. Dirty filters can reduce water flow through the heater and cause the control system to detect unsafe heater conditions.
8. Is an M7 heater element different from the heater assembly?
Yes. The heater element is the internal part that creates heat. The heater assembly may include the tube, element, sensors, terminals, unions, and related hardware.
9. Are Balboa M7 sensors universal?
No. M7 sensors must be matched by control system, part number, cable length, probe size, connector type, and mounting style.
10. What information do I need before ordering M7 parts?
You should gather the control pack model, circuit board number, heater rating, sensor part numbers, cable length, connector style, exact error code, and clear photos of the system.
Final Thoughts
Balboa M7 technology is an important part of many modern hot tub heater and control systems. By using heater-mounted sensors and control board logic, M7 systems help monitor heating, temperature, and water flow behavior without relying on a traditional pressure switch in many designs.
When everything is working properly, the M7 system helps your spa heat safely and consistently. When something goes wrong, symptoms may point to sensors, heater flow, the heater element, the circuit board, or the control pack. That is why proper diagnosis and accurate part matching matter.
If you need help finding the right Balboa M7 heater, M7 sensor set, heater element, circuit board, control pack, topside panel, or related hot tub repair part, Bath & Spa Parts Online carries a wide selection of Balboa spa parts to help keep your hot tub running properly.
