The wet end is the water-moving side of your spa pump. While the motor provides the power, the wet end contains the impeller, housing, seals, and plumbing connections that actually move water through your hot tub. When the wet end is working properly, your spa has strong water flow, reliable heating, and good jet performance. When it fails, you may notice leaks, weak jets, strange noises, poor circulation, or heater flow errors.
Many hot tub owners assume that a bad pump always means the entire pump assembly needs to be replaced. In some cases, that is true. However, if the motor is still in good condition, replacing only the wet end may be a smart and cost-effective repair.
The key is knowing when the wet end is the real problem, when the motor may also be damaged, and how to match the correct replacement wet end. This guide explains what a spa pump wet end does, common signs of failure, and what to check before ordering a replacement.

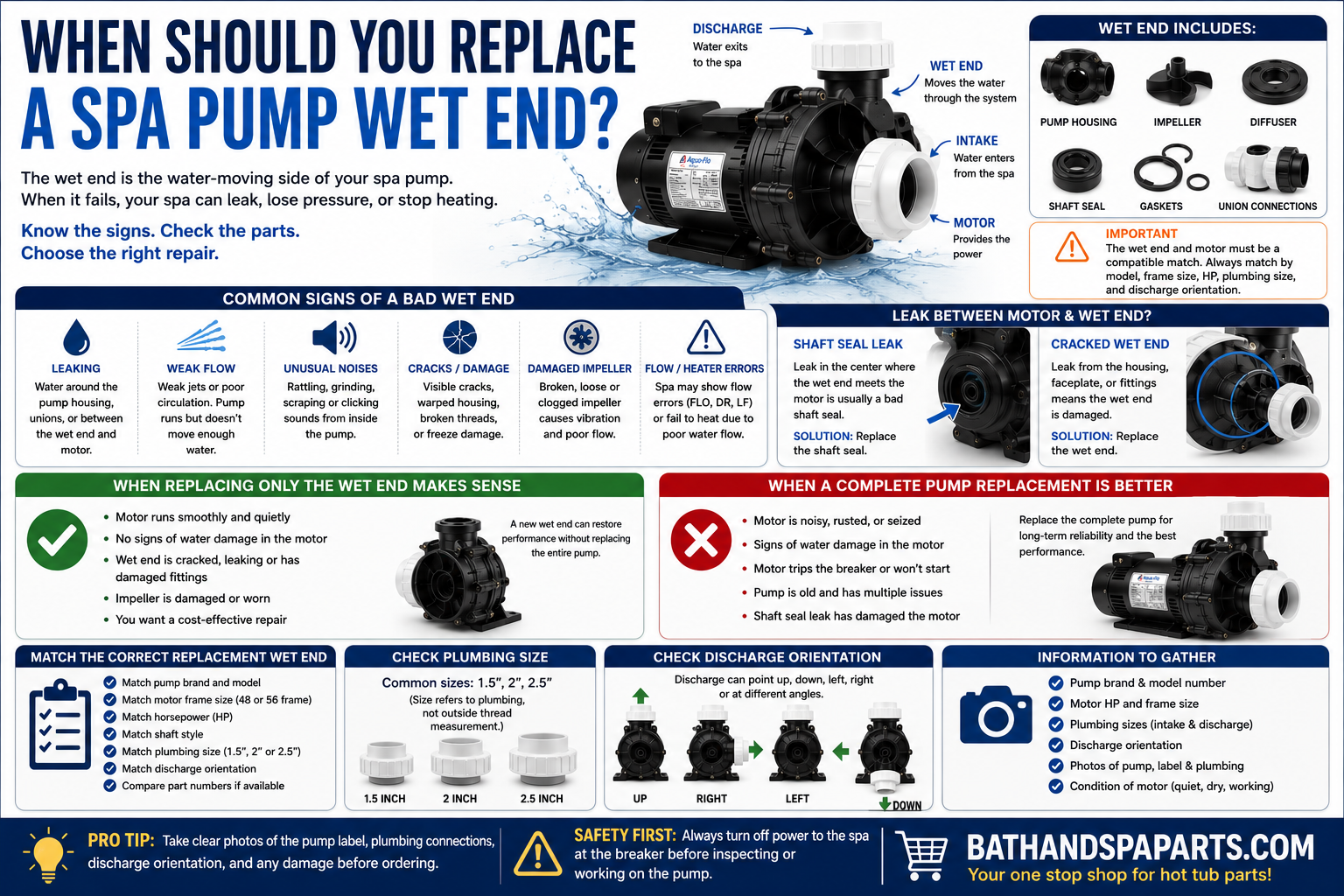

What Is A Spa Pump Wet End?
A spa pump is made up of two main sections: the motor and the wet end. The motor is the electrical side of the pump. The wet end is the water side of the pump. It attaches to the motor shaft and uses an impeller to pull water in and push it back out through the spa plumbing.
The wet end usually includes the pump housing, faceplate, impeller, diffuser, shaft seal, gaskets, and union connections. Water enters through the intake and exits through the discharge port. The orientation and size of these ports must match the spa’s plumbing layout.
Because the wet end is constantly exposed to water, pressure, chemicals, heat, and vibration, it can eventually wear out, crack, leak, or become damaged. When that happens, you may not need a complete pump if the motor is still running properly.
Common Signs Of A Bad Spa Pump Wet End
One of the most common signs of a wet end problem is leaking. A leak from the plastic pump housing, faceplate, union area, or between the wet end and motor can point to a worn seal, cracked housing, damaged gasket, or failed wet end component.
Weak water flow can also be caused by a wet end problem. If the impeller is damaged, clogged, loose, or worn, the pump may run but fail to move water properly. This can cause weak jets, poor circulation, and heater flow errors.
Unusual noises can also come from the wet end. Rattling, grinding, scraping, or clicking may indicate debris inside the pump, a damaged impeller, a loose internal part, or contact between the impeller and housing.
Visible cracks, warped plastic, broken discharge fittings, freeze damage, or damaged threads are also strong indicators that the wet end may need replacement.
Wet End Leak Or Shaft Seal Leak?
Not every pump leak means the entire wet end needs to be replaced. Many leaks between the motor and wet end are caused by a failed shaft seal. The shaft seal is designed to keep water inside the wet end and away from the motor.
If the leak is coming from the center area where the wet end meets the motor, the shaft seal is often the first part to inspect. If the wet end housing is still in good condition and the motor has not been damaged by water, replacing the shaft seal may solve the problem.
However, if the seal has been leaking for a long time, water may have reached the motor bearings. In that case, the motor may become noisy, rusty, or difficult to start. Once water damages the motor, replacing only the shaft seal may not be enough.
If the wet end itself is cracked, warped, or physically damaged, replacing the complete wet end is usually a better repair than replacing only the seal.
When Replacing Only The Wet End Makes Sense
Replacing only the wet end may make sense when the motor is still running smoothly, quietly, and reliably, but the water side of the pump is damaged. This is common when the wet end is cracked, leaking, has damaged threads, or has a broken impeller.
A wet end replacement can also be a good option if the motor was recently replaced and the wet end has now failed. In that case, there may be no reason to replace the entire pump assembly again.
Replacing only the wet end can often save money compared to replacing the complete pump. It may also allow you to keep the existing motor, cord, wiring, and mounting position if everything else is in good condition.
However, the replacement wet end must match the motor frame, horsepower rating, shaft style, plumbing size, and discharge orientation. A wet end that almost fits is still the wrong part if it does not align correctly with the motor and spa plumbing.
When A Complete Pump Replacement Is Better
A complete pump replacement may be the better choice if both the motor and wet end are old, damaged, leaking, or noisy. If the motor bearings are loud, the motor smells burned, the pump trips the breaker, or the motor no longer starts reliably, replacing only the wet end will not solve the full problem.
A complete pump may also be the best option if the existing pump is difficult to identify, heavily corroded, obsolete, or has multiple failing parts. By replacing the full assembly, you get a matched motor and wet end already assembled together.
If the shaft seal has been leaking long enough to damage the motor, it is often smarter to replace the complete pump. Otherwise, you may replace the wet end or seal only to have the motor fail shortly afterward.
Age should also be considered. If the pump is many years old and showing multiple symptoms, a complete replacement may provide better long-term reliability than repairing one part at a time.
Matching The Correct Replacement Wet End
Matching a replacement wet end requires several important details. The wet end must be compatible with the motor frame size, horsepower, shaft style, plumbing size, and discharge position. Choosing by appearance alone can lead to the wrong fit.
Start by identifying the pump manufacturer and model number if possible. This information may be printed on the pump label, wet end housing, or motor label. Common spa pump manufacturers include Waterway, Aqua-Flo by Gecko, Balboa, LX, Vico, Century, and others.
Next, check the motor frame size. Many spa pumps use 48-frame or 56-frame motors. The wet end must match the motor frame correctly so it bolts on properly and aligns with the motor shaft.
You should also match the horsepower rating. The impeller inside the wet end is designed for a certain motor size and performance range. Using the wrong impeller or wet end can overload the motor or reduce performance.
Check Plumbing Size And Union Connections
Spa pump wet ends commonly use plumbing sizes such as 1.5-inch, 2-inch, or 2.5-inch connections. These sizes refer to the plumbing or union size, not necessarily the outside diameter of the pump threads.
This can be confusing because a 2-inch pump connection may measure larger than 2 inches across the outside threads. Whenever possible, match by original pump model number or compare the existing union size carefully.
The intake and discharge connections must line up with the existing spa plumbing. If the replacement wet end has the wrong connection size, you may need plumbing modifications, adapters, or a different wet end.
Also inspect the union nuts and gaskets. Sometimes what looks like a wet end leak is actually a cracked union nut, worn gasket, or loose connection.
Wet End Orientation Matters
Wet end orientation is one of the most important fitment details. The discharge port may point up, left, right, down, or at another angle depending on how the pump is installed in the spa cabinet.
Some wet ends can be rotated to different positions by removing the mounting screws, turning the wet end housing, and reinstalling it in the correct orientation. Other wet ends may have limited or fixed orientation options.
Before ordering, look at the existing pump from the motor end and note where the discharge points. Take photos of the pump from the front, side, and top so you can compare the replacement wet end more accurately.
If the discharge orientation does not match, the pump may not line up with the plumbing. This can cause installation problems, stress on the plumbing, or leaks at the unions.
Do Not Ignore The Impeller
The impeller is the spinning part inside the wet end that moves water. A damaged or clogged impeller can cause weak flow, poor jet performance, heater flow errors, vibration, or unusual noise.
Impellers can be damaged by debris, broken plastic, scale buildup, dry running, freezing, or age. If the impeller is cracked, stripped, loose, or worn, the pump may run but fail to move water efficiently.
When replacing a wet end, the impeller is usually included as part of the assembly. If replacing only the impeller, it must match the motor horsepower, wet end design, and shaft style.
Using the wrong impeller can overload the motor or reduce flow. This is another reason matching by model number and specifications is safer than guessing based on appearance.
Freeze Damage And Cracked Wet Ends
Freeze damage is a common reason spa pump wet ends crack. If water freezes inside the wet end, it can expand and split the plastic housing, faceplate, or plumbing connections. Even a small crack can cause a leak once the spa is refilled and the pump is running.
A cracked wet end should usually be replaced. Temporary patches or sealants may not hold under pressure, heat, vibration, and chemical exposure. A cracked housing can also worsen over time and cause additional leaks.
If the spa froze, inspect more than just the pump. Freeze damage can also affect heaters, manifolds, jets, valves, unions, filters, and plumbing lines.
Information To Gather Before Ordering
Before ordering a replacement spa pump wet end, gather as much information as possible from the existing pump. This will make it easier to match the correct part and avoid installation problems.
- Pump manufacturer and model number
- Motor horsepower
- Motor frame size, such as 48 frame or 56 frame
- Wet end part number, if visible
- Intake plumbing size
- Discharge plumbing size
- Discharge orientation
- Photos of the pump label, wet end, unions, and plumbing layout
- Whether the motor is quiet, dry, and working properly
Clear photos are especially helpful when identifying a replacement wet end. Take pictures from several angles before removing the old part.
Key Takeaways
- The wet end is the water-moving side of the spa pump.
- Common wet end problems include leaks, cracks, damaged impellers, worn seals, poor flow, and unusual noise.
- A leak between the motor and wet end is often caused by a failed shaft seal.
- Replacing only the wet end may make sense if the motor is still quiet, dry, and working properly.
- A complete pump replacement may be better if the motor is noisy, water-damaged, seized, or electrically failed.
- Replacement wet ends must match the motor frame, horsepower, plumbing size, and discharge orientation.
- Do not rely on appearance alone when choosing a replacement wet end.
Frequently Asked Questions About Spa Pump Wet Ends
1. What is a spa pump wet end?
The wet end is the water side of the spa pump. It contains the pump housing, impeller, shaft seal, gaskets, and plumbing connections that move water through the hot tub.
2. Can I replace just the wet end on my spa pump?
Yes, if the motor is still in good condition. The replacement wet end must match the motor frame size, horsepower, plumbing size, and discharge orientation.
3. How do I know if my wet end is bad?
Common signs include leaks, cracks, weak water flow, rattling noises, damaged threads, broken fittings, or a damaged impeller.
4. What causes a wet end to leak?
Wet end leaks may be caused by a failed shaft seal, cracked housing, worn gasket, loose union, cracked union nut, or freeze damage.
5. What is a shaft seal?
The shaft seal keeps water inside the wet end and away from the motor. When it fails, water may leak between the wet end and motor.
6. Should I replace the shaft seal or the entire wet end?
If the wet end housing is in good condition and the motor has not been damaged, a shaft seal replacement may be enough. If the housing is cracked or damaged, a complete wet end replacement is usually better.
7. Can a bad wet end cause weak jets?
Yes. A clogged, damaged, loose, or worn impeller can reduce water flow and cause weak jet performance.
8. Can I rotate a replacement wet end?
Some wet ends can be rotated to different discharge positions, while others cannot. Confirm the design before ordering.
9. What happens if I use the wrong wet end?
The wrong wet end may not fit the motor, may not align with the plumbing, may leak, or may overload the motor if the impeller is not correctly matched.
10. What information do I need to match a spa pump wet end?
You should identify the pump model number, motor horsepower, frame size, plumbing size, discharge orientation, wet end part number if available, and photos of the existing pump.
Final Thoughts
A spa pump wet end plays a major role in water flow, jet performance, heating, and circulation. When it cracks, leaks, or suffers internal damage, your hot tub may not run the way it should. In many cases, replacing only the wet end can restore performance without replacing the entire pump.
The most important step is proper matching. The replacement wet end must fit the motor, match the plumbing, and align with the spa cabinet layout. If the motor is still quiet, dry, and reliable, a wet end replacement may be the right solution. If the motor is noisy, rusted, seized, or water-damaged, a complete pump replacement may be the better choice.
