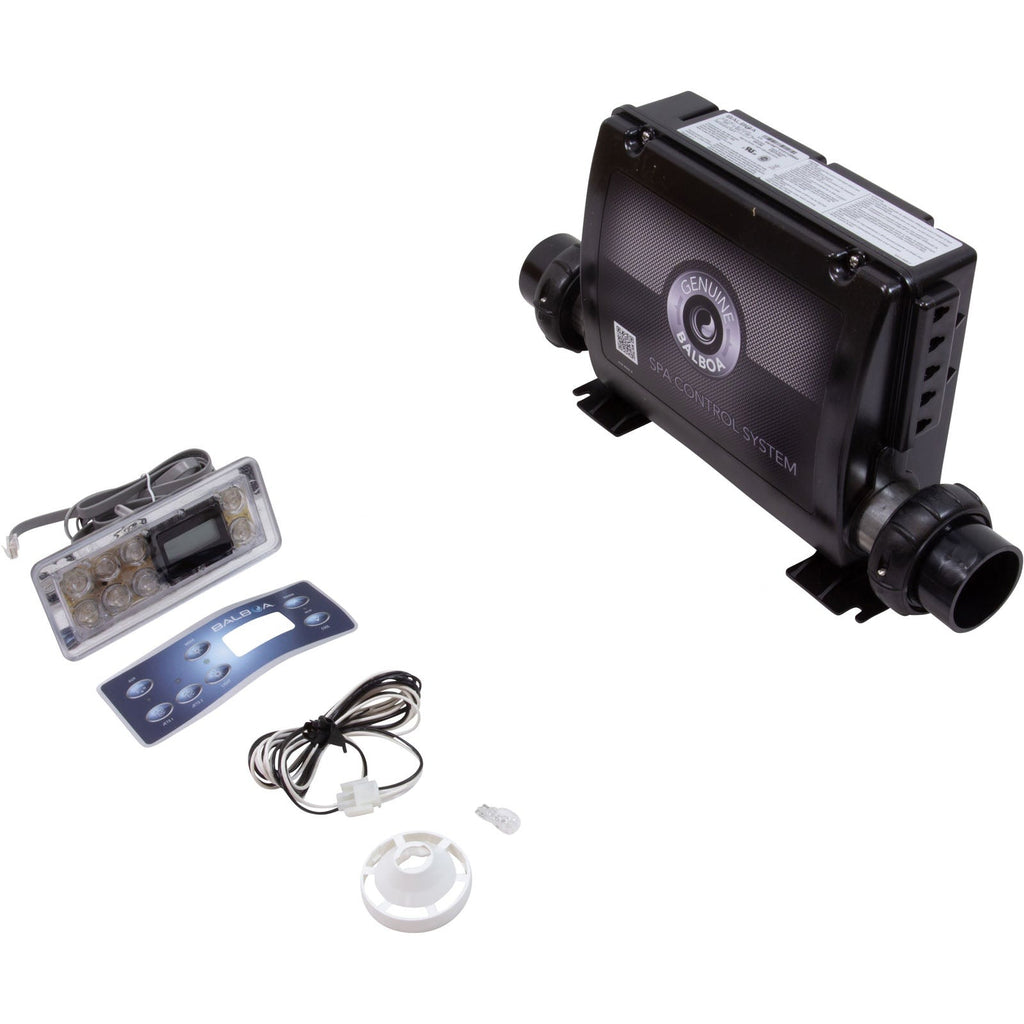

Balboa Hydro Spas HS200VS VS510SZ Spa Control System (55098)
Balboa Water Group (BWG) is dedicated to providing only the highest quality spa systems and spa replacement systems to their customers. They design the Balboa systems to provide the basic functionality that you need matched with the additional features that you want. Whether you are looking at replacing your current spa system or building a new spa, Balboa has the right system for you. Below are the basic system features and functions along with the additional options and devices that will work with this system.
Power Configuration: 60Hz / 48A
This complete retrofit spa pack VS-510 that can be hooked up 120/240V
- Overall dimensions are 11" Tall x 15" Wide x 4-1/2" Deep
- 2 Speed Pump 1 120/240v
- 1 Speed Pump 2 120/240v
- Blower 120/240v
- Circulation Pump 120/240v*
- Ozone 120/240V*
- Auxiliary Hot Port 240v
- 12V Light
- 4.0KW Heater
* Circulation pump and ozone must be matching voltage.
- Full size topside control panel (3.2" x 7.3")
- Adapter plate
- All necessary cords.
Features & Benefits:
- Replaces failure-prone mechanical pressure/flow switch
- Can be plumbed to either suction or pressure side of pump
- 240V power
- Custom plastic enclosure
- M7 flow/ temperature sensors
- Rigorously tested
- US & Canadian safety approvals

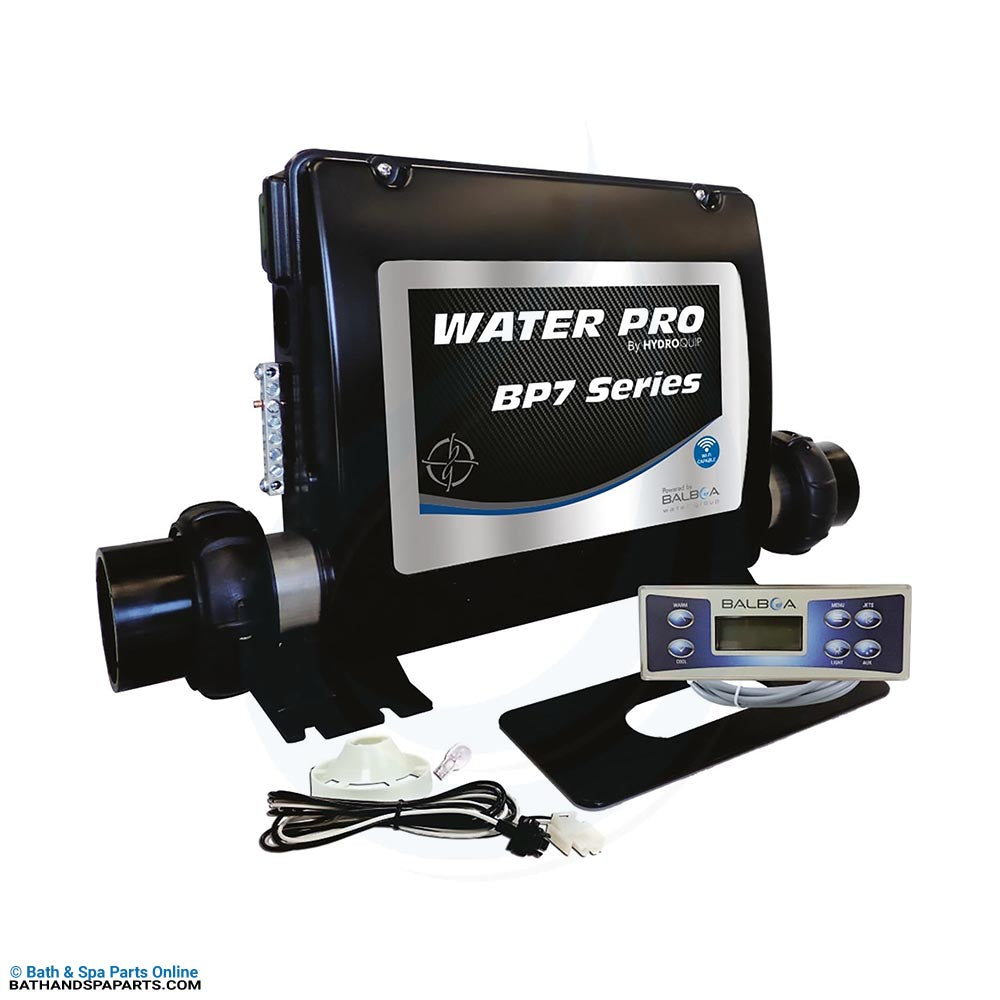

The BP Retrofit kit is based on the Value Series (VS) family of hot tub controls which were designed using Balboa's patented M7 temperature and flow sensor technology. The BP systems have a plastic enclosure to eliminate corrosion and suppress water intrusion. Also, the connectors are built onto the circuit board to minimize wires and simplify service.
The BP System is meant to be installed by a spa professional who can rest easy knowing he's working with a kit that is known for reliability, ease of installation and serviceability
