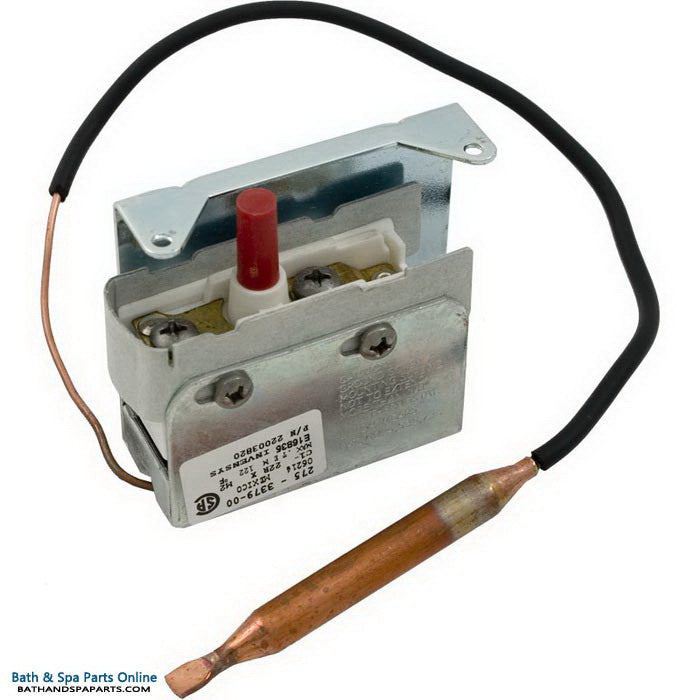

Coates 61L/E-6 Hi-Limit Sensor [5/16" dia] [12"] [SPST] [Screw Terminal] (22003820)
SHARE & GET $10 FOR EVERY FRIEND WHO JOINS US & MAKES A PURCHASE!
$9.88 STANDARD SHIPPING WITHIN THE CONTIGUOUS USA.
High Limit
Manf# 22003820
Capillary Length: 18"
Bulb Length: 2.50"
Bulb Diameter: 5/16"
Vinyl sleeve on capillary
Hi Limits
Single pole rated at 25 amps with temperature rating set at 121ÃðF. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater 12" capillary length, 5/16" bulb thickness
This is a safety device!
If it is found to be out of calibration, do not attempt to perform a field adjustment!
Replace a bad hi limit with a new one
Single pole rated at 25 amps with temperature rating set at 121ÃðF. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater 12" capillary length, 5/16" bulb thickness
This is a safety device!
If it is found to be out of calibration, do not attempt to perform a field adjustment!
Replace a bad hi limit with a new one
