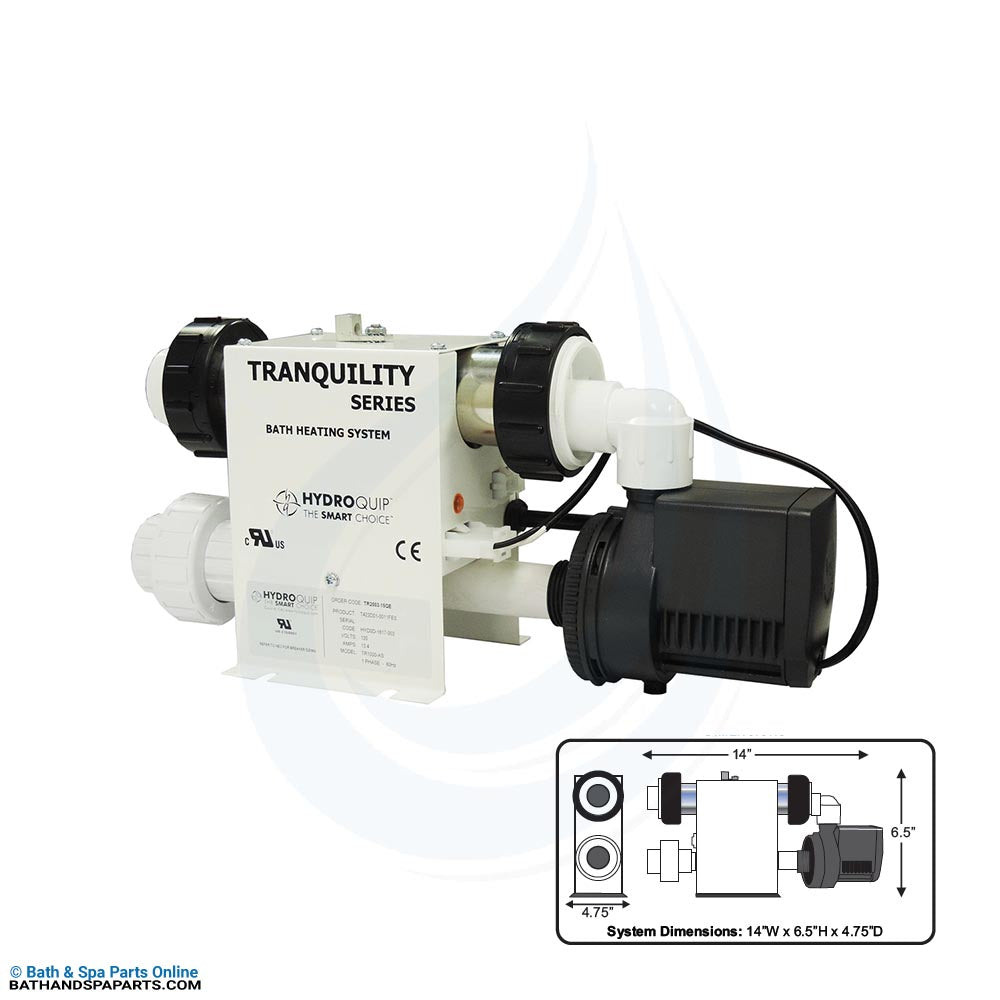

HydroQuip Tranquility Series 1.5kW Bath Heating System (TR2000-15QE)

The HydroQuip Tranquility Series 1.5kW Bath Heating System (TR2000-15QE) is part of Hydro-Quip's Tranquility range of compact heating systems for air tubs and soaking baths. It combines a low-flow circulation concept with a stainless steel heater housing, providing a bath-heating approach tailored to installations where a quiet operating environment and manageable equipment space are important. This 1,500-watt configuration offers greater nominal heating output than the 650-watt and 1,000-watt models in the same Tranquility family.

How This Configuration Operates

The basic control configuration is intended for installations where the pump is started by an existing remote switch or plug-in timer. There is no built-in air switch or countdown timer in this model. The system includes a pressure-switch-activated heater arrangement and a heater-on indicator, with a smart thermostat and high-limit protection described in the supplied product information. Select this particular SKU based on how the existing tub is controlled, rather than treating every Tranquility model as interchangeable.

Installation and Service Considerations

The pump-left or pump-right reversible configuration gives installers flexibility to orient the unit around available space and pipe routing. The manufacturer lists 1-inch plumbing connections and supplies a tailpiece, union assembly, and gasket with the heater system. Electrical supply, switching method, water flow, and the tub manufacturer's installation requirements must all agree before installation. Do not assume an ozone generator, optional sensor, or alternate plumbing fittings are included.

Features and Buying Considerations

• Quiet hydronic approach: The Tranquility family is described as using a low-flow, high-efficiency pump concept intended to avoid the noise associated with certain high-flow bath heating arrangements.
• Flexible equipment placement: The reversible pump-left or pump-right layout and low-profile housing offer installation flexibility within compatible air and soaking tub equipment spaces.
• Temperature management: The supplier identifies an automatic smart thermostat set at 104°F and an intelligent high-limit, along with pressure-switch activation and a heater-on indicator.
• Plumbing and service: The heating system uses 1-inch plumbing connections, and the supplied carton list includes a 1.5-inch-to-1-inch tailpiece, a 1-inch union assembly, and a heater gasket.
• Electrical integration: Check the installation power supply and the 120V three-pin AMP-style pump receptacle identified in the Tranquility family documentation; controller and receptacle arrangements vary by model.
• Verify control version: The introduction says no air switch or timer, but the supplier specification line states “With Air Switch – No Timer.” Confirm the exact delivered control configuration before publishing.
• Optional accessories: Hydro-Quip lists optional ozone-generator support and alternate tailpiece sizes; those should not be assumed to be included with the heater system.

Before ordering: Compare the original heating system, power requirement, switching/timer arrangement and plumbing layout with TR2000-15QE. Follow Hydro-Quip's installation instructions and have the electrical and water-flow safeguards checked by a qualified installer.
