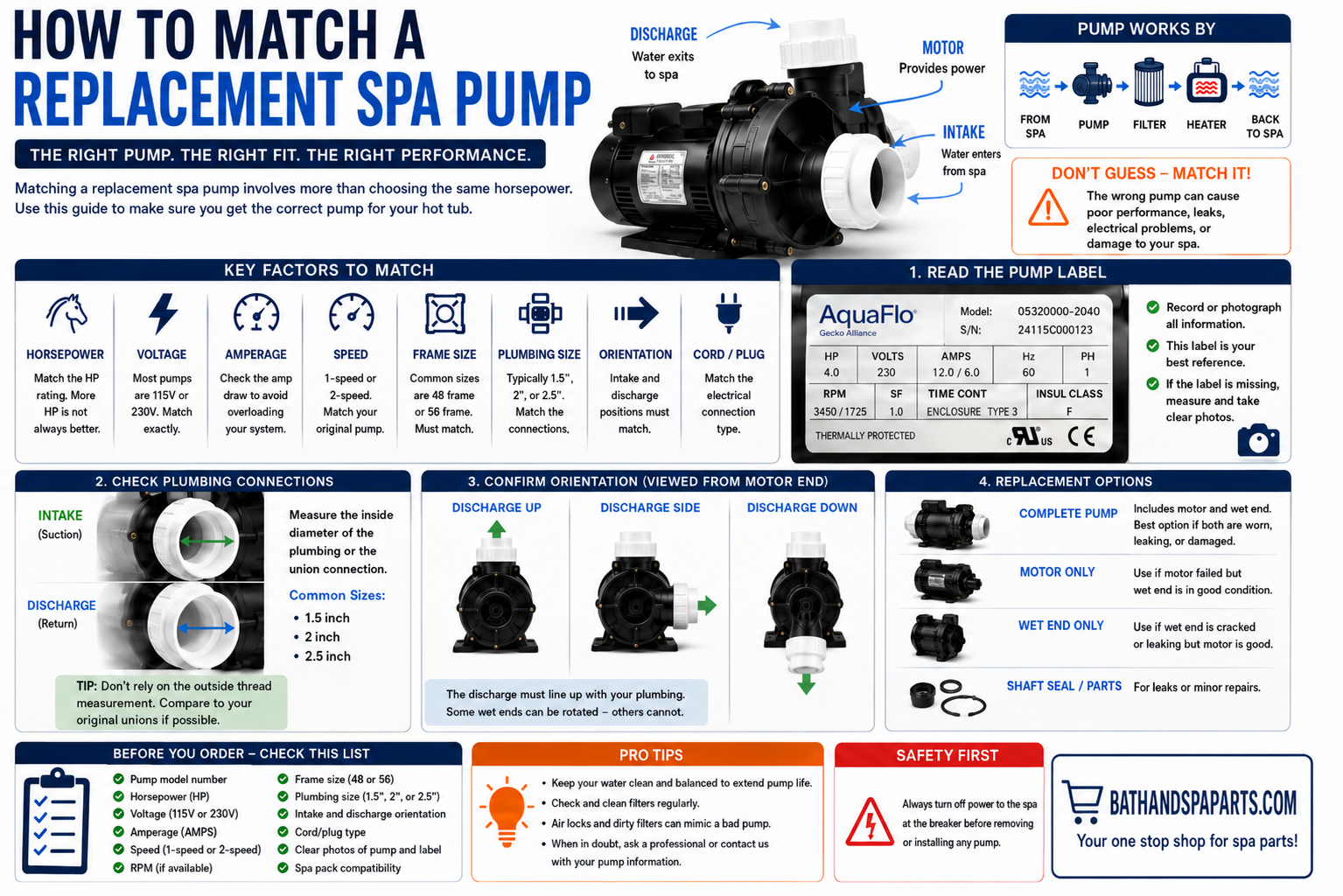

Replacing a spa pump is not as simple as choosing one with the same horsepower. Hot tub pumps vary by voltage, amperage, speed, frame size, plumbing size, wet end orientation, discharge position, cord type, and overall fit. A pump that looks similar may still be the wrong replacement for your spa.
Choosing the wrong spa pump can lead to weak performance, plumbing leaks, electrical problems, overheating, control system issues, or a pump that simply does not fit inside the spa cabinet. In some cases, the wrong pump can also damage other components or prevent the heater from working properly.
The good news is that most replacement spa pumps can be matched correctly if you know what information to look for. This guide will explain the most important details to check before ordering a replacement hot tub pump, including horsepower, voltage, speed, amperage, plumbing size, frame size, and wet end orientation.
Start With The Pump Label
The best place to begin is the label on the existing pump motor. This label usually contains important information such as horsepower, voltage, amperage, RPM, frame size, model number, and manufacturer. These details are extremely helpful when trying to match a replacement pump.
The label may be located on the side of the motor, on top of the motor, or near the electrical connection area. If the label is faded, dirty, or hard to read, take several clear photos with good lighting. Sometimes the model number or electrical ratings can still be identified from part of the label.
If the pump label is missing or unreadable, you may still be able to match the pump by measuring the plumbing connections, checking the motor frame size, identifying the wet end orientation, and reviewing the spa control system specifications.
Horsepower Is Important, But It Is Not Everything
Many spa owners focus first on horsepower, but horsepower alone is not enough to identify the correct pump. Two pumps with the same listed horsepower may have different amperage, different motor frame sizes, different plumbing connections, and different performance ratings.
Spa pump horsepower ratings can also be confusing because some labels show operational horsepower, brake horsepower, or uprated horsepower. This means one manufacturer’s 4 HP pump may not perform exactly the same as another manufacturer’s 4 HP pump.
When replacing a pump, it is usually best to match the original specifications as closely as possible. Upgrading to a larger horsepower pump may sound appealing, but it can create problems if the plumbing, control system, breaker, wiring, or spa jets were not designed for the additional load or flow.
Verify The Pump Voltage
Voltage is one of the most important details when matching a replacement spa pump. Most spa pumps are either 115V or 230V. Installing the wrong voltage pump can cause serious electrical problems and may damage the pump or spa control system.
A 115V pump must be replaced with a compatible 115V pump unless the spa is specifically rewired and designed for a different configuration. A 230V pump must be replaced with a compatible 230V pump. Some motors may list dual voltage, but that does not automatically mean they are wired correctly for your spa.
Always check the motor label and the spa control system before ordering. If you are unsure about voltage, it is safer to have a qualified spa technician or electrician confirm the correct electrical configuration before installing a new pump.
Check The Amperage Rating
Amperage tells you how much electrical current the pump draws while operating. This is important because the spa control system, wiring, relays, fuses, and breaker are designed to handle a specific electrical load.
A replacement pump with significantly higher amperage may overload the control system or cause breaker trips. Even if the horsepower looks similar, the amperage should be compared carefully.
When matching a replacement pump, try to stay close to the original amperage rating. If the new pump draws more current than the original, confirm that your spa pack and electrical service can safely support it before installing the pump.
One-Speed Vs. Two-Speed Spa Pumps
Spa pumps may be one-speed or two-speed. A one-speed pump runs at a single speed whenever it is turned on. A two-speed pump has both low speed and high speed. Low speed is commonly used for heating and filtration, while high speed is used for stronger jet performance.
If your spa originally used a two-speed pump, replacing it with a one-speed pump may prevent the spa from filtering, heating, or operating correctly. The control system may be designed to activate low speed for normal circulation and high speed for jet operation.
The motor label may list two sets of amperage ratings if the pump is two-speed. It may also show two RPM ratings, such as a lower RPM for low speed and a higher RPM for high speed. Matching the speed configuration is critical when selecting a replacement pump.
Frame Size Matters
Spa pump motors commonly use frame sizes such as 48 frame or 56 frame. The frame size affects the physical size of the motor and how the wet end attaches. A replacement motor or pump must match the correct frame style for proper fit and alignment.
A 48-frame motor is typically smaller than a 56-frame motor. If you are replacing a complete pump, the frame size still matters because the pump must fit inside the spa cabinet and align with the existing plumbing.
If you are replacing only the motor and keeping the original wet end, frame size becomes even more important. The motor and wet end must match correctly, or the pump may not assemble properly.
Measure The Plumbing Connections
Spa pumps connect to the plumbing with unions. Common spa pump plumbing sizes include 1.5-inch, 2-inch, and 2.5-inch connections. However, the outside diameter of the pump threads is larger than the plumbing size, which can make measuring confusing.
A 2-inch pump union does not mean the outside thread measures exactly 2 inches. In many cases, the outside diameter of the pump intake or discharge threads will measure larger. This is why it helps to identify the original pump model or compare the union size carefully.
Matching the plumbing size is important because the replacement pump needs to connect to the existing unions without leaks. If the connection size is wrong, you may need additional plumbing changes, adapters, or a different pump.
Check Intake And Discharge Orientation
The pump intake is where water enters the pump. The discharge is where water exits the pump. The position of these ports must match your spa’s plumbing layout, or the new pump may not fit without plumbing modifications.
Some pumps have a center discharge, side discharge, or top discharge. Some wet ends can be rotated to different positions, while others are fixed. If the discharge direction is wrong, the plumbing may not line up with the replacement pump.
Before ordering, look closely at your existing pump and note the direction of the discharge when viewing the pump from the motor end. Taking photos from multiple angles can help confirm the correct orientation.
Do You Need A Pump, Motor, Wet End, Or Seal?
Not every pump problem requires a complete pump replacement. In some cases, you may only need a motor, wet end, shaft seal, capacitor, union, gasket, or other smaller repair part.
If the motor is noisy, seized, overheating, or electrically failed but the wet end is still in good condition, replacing only the motor may be possible. If the wet end is cracked, leaking, or damaged but the motor still works properly, replacing the wet end may be the better option.
If water is leaking between the motor and wet end, the shaft seal may have failed. If caught early, replacing the shaft seal may stop the leak. However, if the leak has already damaged the motor bearings, a motor or complete pump replacement may be needed.
If the pump is old, leaking, noisy, and difficult to identify, replacing the complete pump assembly is often the most practical option.
Match The Cord And Plug Style
Some replacement spa pumps come with a cord, while others do not. Some use AMP plugs, mini J&J plugs, bare wire connections, or manufacturer-specific plugs. The electrical connection must be compatible with your spa control system.
Even if the pump itself is correct, the wrong cord or plug can prevent installation. In some cases, the original cord can be reused if it is in good condition and compatible with the replacement motor. In other cases, a new cord or plug adapter may be needed.
Always confirm the wiring configuration before connecting a pump. Two-speed pumps, in particular, require the correct wiring for common, low speed, high speed, and ground connections.
Avoid Guessing Based On Appearance Alone
Many spa pumps look similar from the outside, especially when they are made by the same manufacturer or use similar wet end designs. However, appearance alone is not enough to confirm compatibility.
Two pumps may look nearly identical but have different voltage, amperage, horsepower, speed, frame size, impeller size, or plumbing connections. Installing the wrong pump can lead to poor performance or equipment damage.
Use the pump label, motor specifications, plumbing measurements, and spa pack requirements together when choosing a replacement. The more information you confirm before ordering, the better chance you have of getting the correct pump the first time.
Information To Gather Before Ordering
Before ordering a replacement spa pump, gather as much information as possible from the existing pump and spa system. This makes it much easier to confirm the correct replacement.
- Pump manufacturer and model number
- Motor horsepower
- Voltage rating
- Amperage rating
- One-speed or two-speed configuration
- RPM rating
- Frame size, such as 48 frame or 56 frame
- Plumbing connection size
- Intake and discharge orientation
- Cord and plug style
- Photos of the pump label, wet end, plumbing, and electrical connection
Having these details ready can prevent ordering mistakes and make it easier to compare replacement options.
Key Takeaways
- Do not match a replacement spa pump by horsepower alone.
- Voltage, amperage, speed, frame size, plumbing size, and discharge orientation all matter.
- A one-speed pump should be replaced with a compatible one-speed pump, and a two-speed pump should be replaced with a compatible two-speed pump.
- The pump label is usually the best starting point for identifying the correct replacement.
- The wet end position and plumbing connections must match your spa’s existing layout.
- Sometimes you may only need a motor, wet end, shaft seal, capacitor, union, or gasket instead of a complete pump.
- Photos of the pump label, plumbing, and electrical connection can help confirm the right replacement part.
Frequently Asked Questions About Matching A Replacement Spa Pump
1. Can I replace my spa pump with a higher horsepower pump?
It is usually best to match the original pump specifications. A higher horsepower pump may require more amperage, create plumbing issues, or overload the spa control system if the spa was not designed for it.
2. Is horsepower the most important detail when replacing a spa pump?
Horsepower is important, but it is not the only detail. Voltage, amperage, speed, frame size, plumbing size, and discharge orientation are also critical.
3. How do I know if my spa pump is 115V or 230V?
Check the motor label and spa control system. The voltage rating is usually printed on the motor label. If you are unsure, have a qualified technician confirm the voltage before replacing the pump.
4. Can I replace a two-speed pump with a one-speed pump?
In most cases, no. If your spa was designed for a two-speed pump, the control system may rely on low speed for heating and filtration and high speed for jet operation.
5. What is the difference between a 48-frame and 56-frame spa pump motor?
Frame size refers to the motor’s physical size and mounting style. A 48-frame motor is generally smaller than a 56-frame motor. The frame size must match the wet end and installation space.
6. How do I measure spa pump plumbing size?
Spa pump unions are commonly referred to as 1.5-inch, 2-inch, or 2.5-inch, but the outside thread diameter will measure larger than the named plumbing size. Comparing the original pump model or union size is often the safest approach.
7. Can I rotate the wet end on a replacement pump?
Some wet ends can be rotated to different discharge positions, while others are fixed. Confirm the pump design before ordering if your plumbing requires a specific discharge direction.
8. Do replacement spa pumps come with cords?
Some do and some do not. Cord and plug styles vary by spa control system, so you should verify whether the replacement pump includes the correct cord or whether your existing cord can be reused.
9. Should I replace the whole pump or just the motor?
If the motor is bad but the wet end is still in good condition, replacing only the motor may be possible. If both the motor and wet end are old, leaking, or damaged, a complete pump replacement may be better.
10. What photos help identify a replacement spa pump?
Helpful photos include the motor label, pump wet end, plumbing connections, discharge direction, cord or plug, and the pump installed inside the spa cabinet.
Final Thoughts
Matching a replacement spa pump correctly is one of the most important steps in keeping your hot tub running properly. While horsepower is a helpful starting point, it is only one part of the match. Voltage, amperage, speed, frame size, plumbing size, discharge orientation, and cord style all need to be considered.
Taking time to confirm these details before ordering can help prevent leaks, poor performance, wiring issues, installation problems, and unnecessary returns. When possible, use the existing pump model number and motor label as your primary reference.
