When a hot tub pump starts leaking, losing pressure, making noise, or failing to move water properly, many spa owners assume the entire pump needs to be replaced. Sometimes that is true. However, in many cases, the problem may be limited to the wet end, which is the water-moving portion of the pump attached to the motor.
The wet end contains important parts such as the pump housing, impeller, shaft seal, faceplate, diffuser, wear ring, drain plugs, and union connections. If the motor is still good but the wet end is cracked, leaking, clogged, or worn, replacing the wet end may be a practical repair. Understanding how spa pump wet ends work can help you decide whether you need a wet end, a pump seal, a motor, or a complete pump replacement.
1. What Is A Spa Pump Wet End?

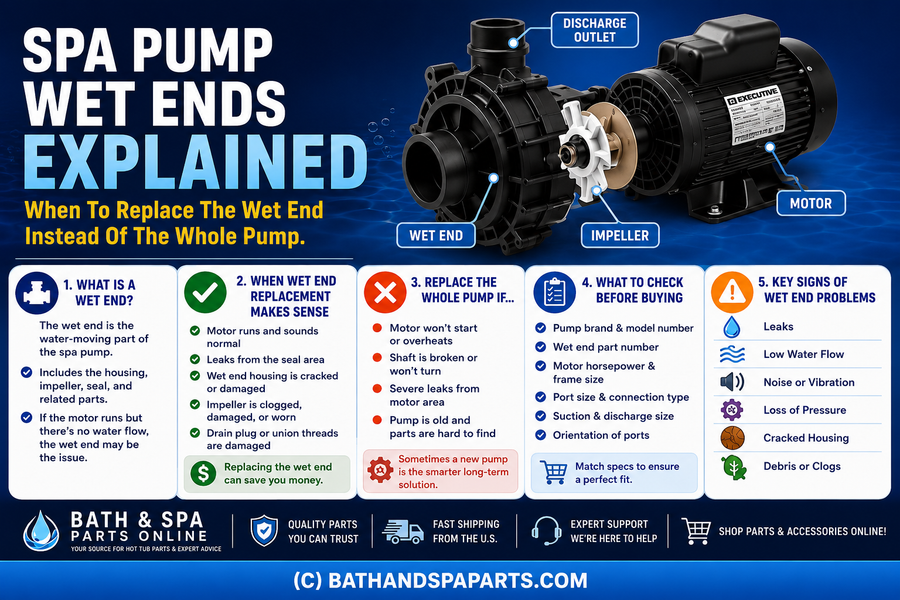

The wet end is the part of the pump that water flows through. It is mounted to the electric motor and is responsible for pulling water in, spinning it with the impeller, and pushing it back out through the plumbing.
- The motor provides the power.
- The wet end moves the water.
- The impeller spins inside the wet end to create water flow.
- The shaft seal helps keep water from leaking into the motor.
Why it matters: If the motor still runs well but the water-moving side of the pump is damaged, a wet end replacement may solve the problem without replacing the entire pump.
2. Wet End Vs. Motor: What Is The Difference?
A complete spa pump is usually made of two main sections: the motor and the wet end. The motor is the electrical section. The wet end is the plumbing and water section. Knowing which side has failed can save time and money.
- Motor problems may include humming, overheating, tripping breakers, bad bearings, or failure to start.
- Wet end problems may include leaks, cracked housings, broken impellers, clogged impellers, or damaged threads.
- Seal problems usually appear as water leaking between the wet end and motor.
- Complete pump problems may involve both the motor and wet end.
Why it matters: Replacing only the wet end makes sense when the motor is still healthy. If the motor is failing, a complete pump replacement is usually the better choice.
3. When A Wet End Replacement Makes Sense
A wet end replacement can be a smart repair when the water-side components are damaged but the motor still runs normally. This is common when the pump leaks, the housing cracks, or the impeller is damaged.
- The motor starts and runs normally.
- The pump leaks from the wet end area.
- The wet end housing is cracked.
- The impeller is damaged or clogged.
- The union threads or drain plug areas are damaged.
Solution: If the motor is quiet, strong, and reliable, but the wet end is leaking or physically damaged, compare replacement wet ends before buying a full pump.
4. When You Should Replace The Whole Pump Instead
Replacing only the wet end is not always the best repair. If the motor is old, noisy, weak, overheating, rusted, or electrically failing, installing a new wet end may not solve the full problem.
- The motor hums but will not start.
- The motor bearings are loud or grinding.
- The pump trips the breaker.
- The motor overheats or shuts down.
- The motor shaft is corroded or damaged.
- Both the motor and wet end are worn out.
Solution: If the motor is showing signs of electrical or mechanical failure, replace the complete pump rather than investing in only the wet end.
5. A Leaking Shaft Seal Does Not Always Mean You Need A Wet End
A common leak point is the shaft seal between the wet end and motor. This seal is designed to keep water inside the wet end and away from the motor. When it fails, water often drips from the area where the wet end mounts to the motor.
- A seal leak may appear under the center of the pump.
- Water may drip between the wet end and motor.
- A bad seal can damage motor bearings if ignored.
- Seal replacement may be enough if the wet end housing is still good.
Solution: If the only problem is a leaking shaft seal, you may only need a pump seal kit. If the seal seat, housing, impeller, or wet end body is damaged, replacing the wet end may be more practical.
6. Cracked Wet Ends Should Usually Be Replaced
Wet end housings can crack from freeze damage, age, stress, impact, overtightened fittings, or dry-fire and overheating conditions nearby. Cracks can cause leaks and loss of pressure.
- Freeze damage can split the housing.
- Overtightened unions can damage threads or fittings.
- Cracks can leak under pressure.
- Temporary patches are usually not reliable long-term repairs.
Solution: Replace cracked wet ends rather than relying on glue, epoxy, or sealants. A proper replacement helps restore the pump’s strength and leak-free operation.
7. Impeller Problems Can Reduce Water Flow
The impeller is the spinning part inside the wet end that moves water. If it is clogged, cracked, warped, or loose, the pump may run but fail to produce strong flow.
- A clogged impeller can reduce jet pressure.
- A cracked impeller may create vibration or poor flow.
- A loose impeller may not move water correctly.
- Debris inside the wet end can stop the pump from performing properly.
Solution: If the motor runs but water flow is weak, inspect the impeller. Clean debris if possible. If the impeller or internal wet end parts are damaged, replace the correct parts or the complete wet end.
8. Wet End Orientation Matters
Spa pump wet ends are available in different discharge orientations. The discharge is the outlet where water leaves the pump and connects to the plumbing. If the orientation does not match, the pump may not line up with the existing plumbing.
- Center discharge and side discharge wet ends are common styles.
- The outlet position must line up with the plumbing.
- Some wet ends can be rotated, depending on design.
- Wrong orientation can require plumbing changes or prevent installation.
Solution: Before ordering, compare the discharge position of the original wet end. Check whether your pump uses side discharge, center discharge, top discharge, left-facing, right-facing, or rotatable wet end positioning.
9. Plumbing Size Must Match
Wet ends connect directly to spa plumbing, so suction and discharge sizes must match the existing unions or adapters. A wet end that looks similar may still use a different plumbing size.
- Suction size is the intake connection.
- Discharge size is the outlet connection.
- Union size may not equal pipe size exactly.
- Wrong plumbing size can cause fitment problems or leaks.
Solution: Measure carefully and compare the original wet end specifications. Match suction size, discharge size, union style, gasket size, and thread type whenever possible.
10. Match The Wet End To The Motor Frame And Horsepower
A wet end must match the motor it attaches to. The frame size, shaft style, mounting pattern, horsepower rating, and impeller must be compatible. Installing the wrong wet end can reduce performance or damage the motor.
- Frame size may be 48 frame or 56 frame.
- Horsepower rating should match the pump design.
- Mounting bolts must line up correctly.
- The impeller must fit the motor shaft.
Solution: Match the wet end to the motor label and original pump model. Check horsepower, frame size, shaft type, speed, and manufacturer part number before ordering.
11. Wet End Replacement Can Be More Cost-Effective
If the motor is still in good condition, replacing the wet end can sometimes be less expensive than replacing the entire pump. This can be especially helpful when the damage is limited to the water-side components.
- Wet ends can cost less than complete pump assemblies.
- A good motor can continue to be used.
- Installation may be simpler if the replacement matches correctly.
- It avoids replacing parts that are still working.
Solution: Consider wet end replacement when the motor is healthy and the failure is limited to leaks, cracked housings, damaged threads, impeller problems, or water-side wear.
12. What To Check Before Buying A Replacement Wet End
Ordering the right wet end requires more than matching the general shape. Gather information from the original pump and wet end before buying.
- Pump brand and model number.
- Wet end part number, if visible.
- Motor horsepower and frame size.
- Suction and discharge plumbing size.
- Discharge orientation.
- Pump speed, such as single-speed or two-speed.
- Photos of the pump label and wet end.
Solution: Take clear photos before removing the pump. Compare all specifications carefully so the new wet end matches the original installation.
Quick Wet End Replacement Checklist
- Confirm the motor still starts and runs properly.
- Identify whether the leak is from the seal, housing, union, or drain plug.
- Inspect the wet end for cracks or damaged threads.
- Check whether the impeller is clogged, cracked, or worn.
- Match the pump brand and model number.
- Match motor horsepower and frame size.
- Match suction and discharge plumbing sizes.
- Match discharge orientation.
- Replace the shaft seal when replacing or opening the wet end.
- Use new gaskets or O-rings where needed.
- Prime the pump after installation.
- Check for leaks and strong water flow before normal operation.
This checklist can help you decide whether a wet end replacement is the right repair and what details need to match before ordering parts.
Key Takeaways
- The wet end is the water-moving side of the pump. It includes the housing, impeller, seal, faceplate, plumbing connections, and related parts.
- Wet end replacement can make sense if the motor is still good. If the motor runs quietly and reliably, a wet end repair may be more cost-effective than a full pump replacement.
- A leaking shaft seal may only need a seal kit. However, cracked housings, damaged seal seats, broken impellers, or damaged threads may justify replacing the wet end.
- Complete pump replacement is better when the motor is failing. Humming, overheating, breaker trips, bearing noise, corrosion, or failure to start usually point beyond the wet end.
- Matching details matter. Brand, model number, horsepower, frame size, plumbing size, discharge orientation, and wet end design must match the original setup.
A spa pump wet end replacement can be a smart repair when the motor is still strong and the problem is limited to the water-side portion of the pump. Cracks, leaks, damaged threads, worn impellers, and wet end housing problems may not require replacing the entire pump.
Before ordering, identify the exact cause of the problem and compare the original pump carefully. If the motor is healthy, a wet end replacement may save money and restore proper flow. If the motor is noisy, weak, overheating, or tripping the breaker, replacing the complete pump is usually the better long-term solution.
