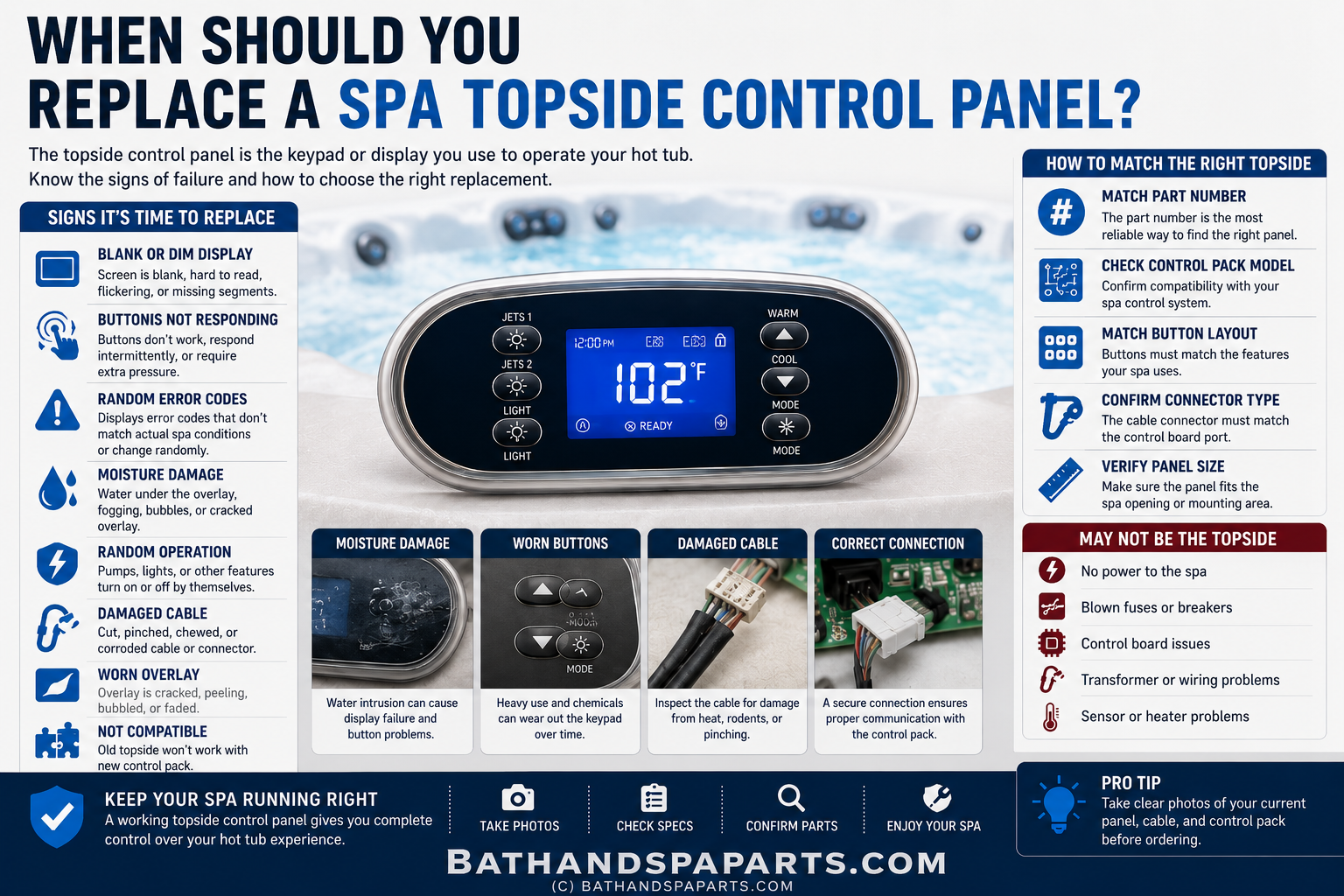

The spa topside control panel is the keypad or display you use to operate your hot tub. It allows you to adjust the temperature, turn pumps on and off, control lights, change modes, set filter cycles, and view error codes. When the topside starts failing, it can make the entire spa feel like it has a major electrical problem.
In many cases, a bad topside control panel can cause unresponsive buttons, blank displays, incorrect temperature readings, random error codes, or communication problems with the spa control pack. Knowing when to replace the topside panel can help you avoid unnecessary repairs and get your hot tub working properly again.
1. The Display Is Blank Or Hard To Read
One of the most obvious signs of topside control failure is a blank, dim, flickering, or unreadable display. If the spa has power but the control panel does not show anything, the topside may no longer be communicating with the control system.
- Blank screens may indicate a failed topside, damaged cable, or control board issue.
- Dim displays can make it difficult to read temperature settings and error codes.
- Flickering screens may point to moisture damage, loose connections, or internal failure.
- Missing display segments can make numbers and letters appear incorrectly.
Solution: Check that the spa has power and inspect the topside cable connection at the control pack. If the connection is secure and the display remains blank or unreadable, the topside control panel may need to be replaced.
2. Buttons Are Not Responding
If the buttons on the topside panel do not respond, respond only sometimes, or require extra pressure, the keypad may be worn out. Over time, repeated use, water exposure, sunlight, and chemical vapors can damage the button membrane.
- Pump buttons may stop turning jets on or off.
- Temperature buttons may fail to raise or lower the set temperature.
- Light or mode buttons may stop responding.
- Intermittent buttons may work one day and fail the next.
Solution: If only one button is failing, the overlay or membrane may be worn. If several buttons are not responding, the topside panel itself is often the problem. Make sure the spa is not in a locked mode before replacing the panel.
3. The Spa Shows Random Error Codes
A failing topside control panel can sometimes display error codes that do not match the actual condition of the spa. While many error codes are caused by real problems, random or changing codes may point to a communication issue.
- Sensor codes may appear even when sensors are working properly.
- Flow codes may display inconsistently or disappear after restarting the spa.
- Temperature warnings may appear even when the water temperature is normal.
- Communication errors may indicate the topside and control board are not communicating correctly.
Solution: Always troubleshoot the actual error code first. Check water level, filters, pump operation, sensors, and heater flow. If the codes are inconsistent, random, or unrelated to actual spa conditions, inspect the topside cable and control panel.
4. The Panel Has Moisture Under The Overlay
Moisture is one of the most common causes of topside control failure. If water gets under the overlay, into the buttons, or inside the display area, the panel may begin to short out or stop working correctly.
- Bubbles under the overlay may indicate the adhesive is failing.
- Fogging inside the display can be a sign of water intrusion.
- Cracks in the overlay can allow moisture into the panel.
- Chemical damage can weaken the keypad surface over time.
Solution: If moisture has entered the topside control panel, replacement is usually the best option. A new overlay may help if only the surface sticker is worn, but once the electronics are damaged, the full topside panel usually needs to be replaced.
5. The Spa Turns Components On Or Off By Itself
If pumps, lights, or other spa features turn on or off without pressing a button, the topside panel may be sending false signals to the control pack. This can happen when buttons are stuck, moisture is present, or the keypad membrane has failed.
- Jets may turn on unexpectedly even when no one is using the spa.
- Lights may cycle on or off without pressing the light button.
- Temperature settings may change without user input.
- Menus may scroll by themselves if a button is stuck or shorted.
Solution: Inspect the topside buttons for sticking, cracking, or water damage. If the panel continues to send commands without being touched, disconnect power to the spa and inspect the topside and control system before using it again.
6. The Topside Cable Is Damaged
The topside control panel connects to the spa control pack through a cable. If this cable is pinched, chewed, corroded, cut, or damaged, the panel may lose communication with the control board.
- Loose plugs can cause intermittent display or button problems.
- Corroded connectors may prevent proper communication.
- Rodent damage can break wires inside the spa cabinet.
- Pinched cables can cause shorts or intermittent failures.
Solution: Follow the topside cable from the panel to the control pack and inspect it for visible damage. If the cable is damaged and permanently attached to the topside, the entire panel usually needs to be replaced.
7. The Overlay Is Cracked, Peeling, Or Worn Out
The overlay is the printed sticker or membrane on the top of the control panel. It protects the buttons and helps identify the spa functions. A worn overlay does not always mean the entire topside is bad, but it can lead to failure if moisture gets underneath.
- Peeling edges can allow water to enter the keypad area.
- Cracked button areas can expose the panel to moisture.
- Faded labels can make the spa harder to operate.
- Bubbling overlays may indicate adhesive failure or trapped moisture.
Solution: If the panel works properly and only the overlay is worn, replacing the overlay may be enough. If buttons are failing, moisture is present, or the display is not working, replacing the full topside panel is usually the better option.
8. The Topside Is No Longer Compatible With A New Control Pack
If you are replacing the spa control pack, your old topside panel may not work with the new system. Topside panels are usually specific to the control system brand, series, connector type, and software platform.
- Balboa topsides must be matched to compatible Balboa control systems.
- Gecko topsides must be matched to compatible Gecko control systems.
- Connector shape alone does not guarantee compatibility.
- Button layout should match the features your spa uses.
Solution: When replacing a spa control pack, confirm whether the existing topside is compatible. If not, replace the topside panel at the same time as the control pack to avoid communication errors and missing functions.
9. How To Match The Correct Replacement Topside
Ordering the correct topside control panel requires more than matching the shape from a picture. Many panels look similar but use different cables, connectors, button layouts, overlays, and software compatibility.
- Part number is the best way to match the correct replacement.
- Control pack model helps confirm compatibility.
- Button layout should match your current spa functions.
- Connector type must match the control board port.
- Panel size must fit the spa shell opening or mounting area.
Solution: Take photos of the existing topside panel, the overlay, the cable connector, and the control pack label before ordering. If possible, match the original part number or confirm compatibility with the spa control system model.
10. When The Problem May Not Be The Topside
Not every control problem is caused by the topside panel. A blank display, error code, or unresponsive spa may also be caused by the control board, transformer, fuse, wiring, breaker, sensor, or power supply issue.
- No power to the spa can make the topside appear dead.
- Blown fuses inside the control pack can stop components from working.
- Control board failure can prevent communication with the panel.
- Transformer problems can prevent low-voltage power from reaching the topside.
Solution: Before replacing the topside, confirm that the spa has proper power and that the control pack is operating. If the topside is blank and the control system has no signs of power, the issue may be elsewhere in the electrical system.
Key Takeaways
- A bad topside panel can cause blank displays, unresponsive buttons, random commands, or communication errors.
- Moisture damage is one of the most common reasons a topside control panel fails.
- A worn overlay may be replaceable if the panel still works correctly.
- Topside panels must be matched to the correct control pack brand, model, connector, and button layout.
- Not every blank or unresponsive panel means the topside is bad. Power supply, fuse, transformer, or circuit board issues can cause similar symptoms.
Replacing a spa topside control panel can restore normal operation when the display, buttons, cable, or keypad electronics have failed. However, the replacement must be matched carefully to the spa control system. Before ordering, identify the control pack model, topside part number, button layout, connector type, cable length, and panel dimensions.
If you are unsure which topside panel fits your hot tub, take clear photos of the existing panel, overlay, cable connector, control pack label, and wiring diagram. Those details can make it much easier to find the correct replacement and avoid ordering a panel that will not communicate with your spa.
