Replacing a spa pump is not as simple as matching the horsepower printed on the label. Horsepower ratings are not always measured or presented consistently between manufacturers, so two pumps labeled with the same horsepower may have very different electrical requirements and performance.
When comparing replacement spa pumps, amperage should be your primary matching specification. After confirming the correct voltage and speed, compare the amp rating of the replacement pump to the original as closely as possible. Amperage provides a more dependable indication of the electrical load placed on the spa control system than the advertised horsepower rating.
You must also confirm the plumbing connections, motor frame size, wet end position, overall dimensions, cord, plug, and pump type. Choosing the wrong pump can cause poor water flow, weak jets, heater problems, leaks, breaker trips, or damage to the spa control system.
1. Start With The Pump Label
The pump label provides the most important information needed to identify a suitable replacement. Take a clear picture of the entire label before removing the old pump.
- Amperage is shown as amps or A. This is the most useful specification for comparing the electrical load of similar replacement pumps.
- Voltage is usually listed as 115V, 120V, 230V, or 240V.
- Speed identifies the pump as single-speed or two-speed.
- Horsepower is shown as HP, but should be used only as a general reference.
- Frame size is commonly listed as 48-frame or 56-frame.
Tip: For a two-speed pump, record both the high-speed and low-speed amp ratings. If the label is faded or missing, photograph the pump, plumbing, wet end, cord, plug, and equipment area before ordering.
2. Match Amperage As Closely As Possible
Amperage is the most important comparison when matching pumps of the same voltage and speed. It shows how much electrical current the motor draws and helps determine whether the replacement pump is appropriately sized for the spa control system and the work performed by the original pump.
- For two-speed pumps, compare both the high-speed and low-speed amp ratings.
- A substantially higher amp draw may overload the spa pack, relay, wiring, or breaker.
- A substantially lower amp draw may indicate that the pump will not provide comparable water flow or jet performance.
- Small differences are normal between manufacturers and newer motor designs, but large differences should be reviewed carefully.
Best Practice: After confirming that the voltage and speed are correct, select a replacement pump with amperage as close as reasonably possible to the original. Do not assume two pumps are equivalent simply because their horsepower labels match.
3. Do Not Match A Pump By Horsepower Alone
Horsepower can provide a general idea of pump size, but it is often misleading when comparing replacement pumps. Ratings may be presented differently between manufacturers, and terms such as full-rated, uprated, brake horsepower, and maximum horsepower can make similarly labeled pumps perform very differently.
- Two pumps with the same listed horsepower may have different amp draws, motor sizes, flow rates, and performance.
- A higher advertised horsepower does not necessarily mean a stronger or better replacement.
- An oversized pump can create excessive flow, plumbing stress, leaks, breaker trips, or control-system problems.
Important: Use horsepower only as a general reference. Amperage is the more dependable comparison once voltage and speed have been confirmed.
4. Confirm The Correct Voltage
Voltage must match the original pump. Most spa pumps are either 115V or 230V. Using the wrong voltage can damage the pump, trip the breaker, or create a serious electrical hazard.
- 115V pumps are common on some smaller plug-and-play spas.
- 230V pumps are common on many larger hot tubs and jet pump systems.
- Dual-voltage motors must still be wired correctly for the voltage supplied by the spa control pack.
Solution: Always match the voltage listed on the original pump label. Do not substitute a 115V pump for a 230V pump, or a 230V pump for a 115V pump, unless the spa wiring and control system are specifically changed to support it.
5. Match Single-Speed Or Two-Speed Operation
Spa pumps are usually single-speed or two-speed. The replacement must match the operating type supported by the spa control system.
- Single-speed pumps run at one speed and are often used as dedicated jet pumps or circulation pumps.
- Two-speed pumps use low speed for functions such as heating or filtration and high speed to power the jets.
- An incorrect speed type can cause wiring problems, control issues, or improper spa operation.
Solution: Replace a single-speed pump with a single-speed pump and a two-speed pump with a two-speed pump unless a planned system conversion is being performed with the correct wiring and control support.
6. Measure The Plumbing Size
Spa pumps connect to the plumbing through union fittings. The replacement pump must match the existing plumbing or be installed with the proper unions, adapters, or plumbing modifications.
- 1.5-inch plumbing is often found on smaller or lower-flow systems.
- 2-inch plumbing is common on many spa jet pumps.
- 2.5-inch plumbing is commonly used on larger, higher-flow pumps.
Solution: Confirm the plumbing and union size before ordering. The stated plumbing size is not the same as the outside diameter of the pump threads, so do not identify the size by measuring the outside of the threaded connection alone.
7. Check The Wet End Position And Pump Dimensions
The wet end is the plastic housing where water enters and exits the pump. Even when the amperage, voltage, speed, and plumbing size are correct, the replacement must still align with the spa plumbing and fit inside the equipment area.
- The intake location must line up with the existing suction plumbing.
- The discharge direction must match the plumbing outlet position.
- The overall length and height must fit within the spa cabinet.
- The mounting footprint must work with the existing base or mounting area.
Solution: Compare the old and replacement pump dimensions before ordering. Many wet ends can be rotated, but not every pump can be installed without plumbing or mounting changes.
8. Confirm 48-Frame Or 56-Frame Motor Size
Spa pump motors are commonly available in 48-frame and 56-frame sizes. Frame size affects the motor diameter, wet end compatibility, mounting, and physical fit.
- 48-frame motors are generally smaller in diameter.
- 56-frame motors are generally larger and may not fit in the same space.
- The wrong frame size can cause mounting, plumbing alignment, and installation problems.
Solution: Check the motor label and compare the physical dimensions of the old pump before ordering. Frame size is especially important when cabinet space is limited.
9. Know The Difference Between Circulation Pumps And Jet Pumps
Not every spa pump performs the same job. Circulation pumps and jet pumps are designed for very different flow requirements and operating conditions.
- Circulation pumps usually provide continuous or scheduled low-flow circulation through the heater and filter.
- Jet pumps move a much larger volume of water to produce jet pressure.
- Using the wrong pump type can cause poor heating, weak jets, flow errors, or equipment damage.
Solution: Replace a circulation pump with a compatible circulation pump and a jet pump with a compatible jet pump. Match the pump to the job it performs in the spa.
10. Check The Cord, Plug, And Wiring
Some replacement pumps include a cord, while others are sold without one. The original pump may use a specific plug, connector, cord length, or direct-wiring arrangement.
- Cord length must be sufficient to reach the spa control pack.
- Plug style must match the control-system connection.
- Two-speed wiring must be connected correctly for low speed, high speed, neutral, and ground.
Solution: Compare the cord, plug, and wiring on the old pump before ordering. If a cord must be transferred or wiring changed, the work should be completed by a qualified professional.

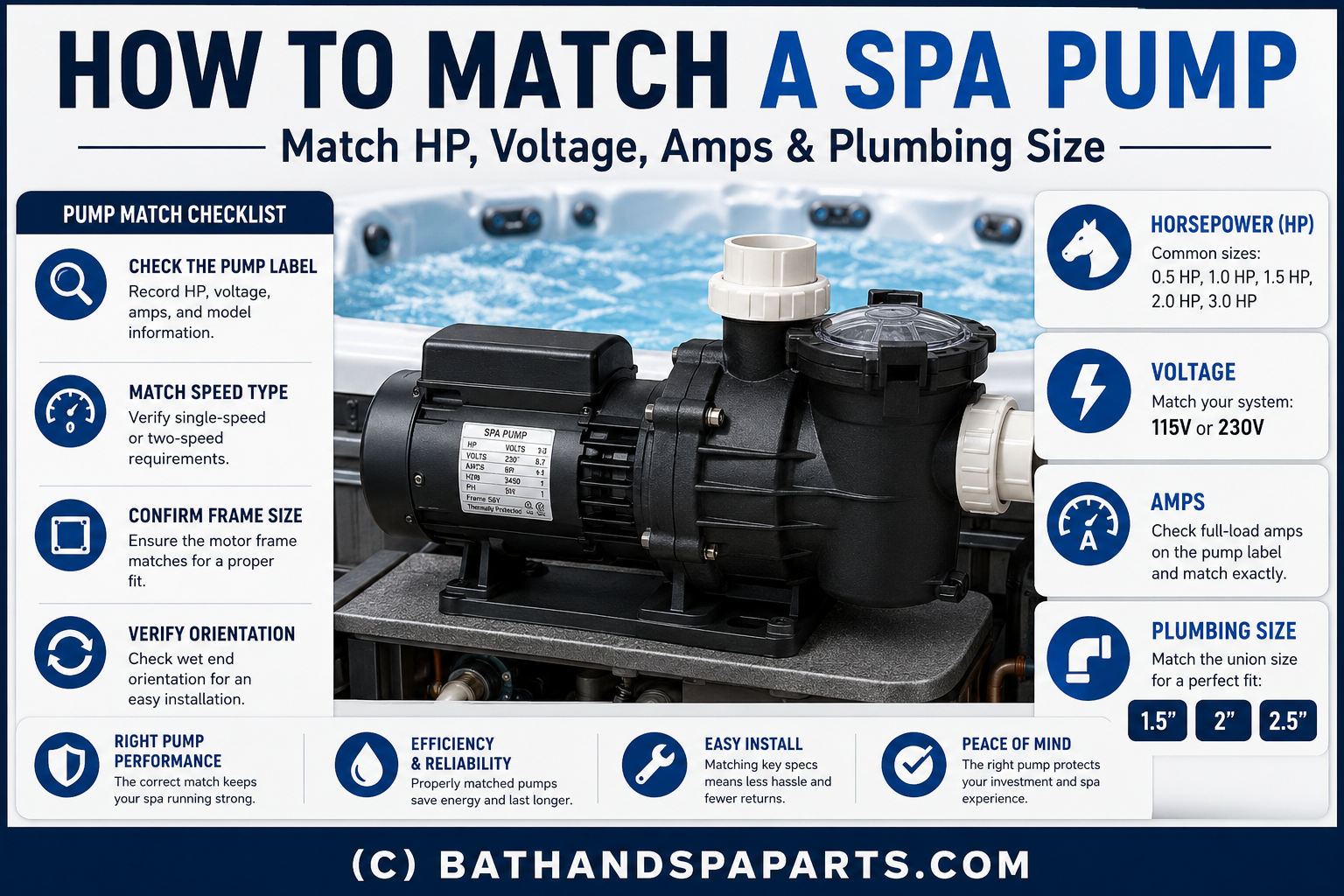

Replacement Pump Checklist
- Amperage: Match as closely as possible. For two-speed pumps, compare both high-speed and low-speed ratings.
- Voltage: Confirm 115V or 230V.
- Speed: Confirm single-speed or two-speed operation.
- Horsepower: Use only as a general reference, not as the primary matching specification.
- Plumbing: Confirm suction and discharge connection sizes.
- Wet end: Confirm intake and discharge orientation.
- Frame and dimensions: Confirm motor frame, overall size, and mounting space.
- Pump type: Confirm whether it is a circulation pump or jet pump.
- Cord and plug: Confirm connector style, cord length, and wiring arrangement.
Key Takeaways
- Match amperage above horsepower. Once voltage and speed are confirmed, amperage is the most dependable specification for comparing replacement spa pumps.
- Do not rely on the horsepower label alone. Horsepower ratings can vary between manufacturers and may not represent comparable electrical load or performance.
- For two-speed pumps, compare both amp ratings. High-speed and low-speed amperage should both be reasonably close to the original pump.
- Voltage and speed must match. A pump with the wrong voltage or operating type is not a suitable replacement.
- Physical compatibility still matters. Plumbing size, wet end orientation, frame size, dimensions, cord, and plug must also be confirmed.
The simplest rule is this: confirm the voltage and speed, then match the amperage as closely as possible. Use horsepower only as a general reference. Finally, verify the plumbing, wet end position, frame size, pump dimensions, cord, and plug before ordering.
When in doubt, take clear photos of the pump label, plumbing connections, wet end, wiring, plug, and equipment area. These details make it much easier to identify the correct replacement and avoid ordering the wrong spa pump.
