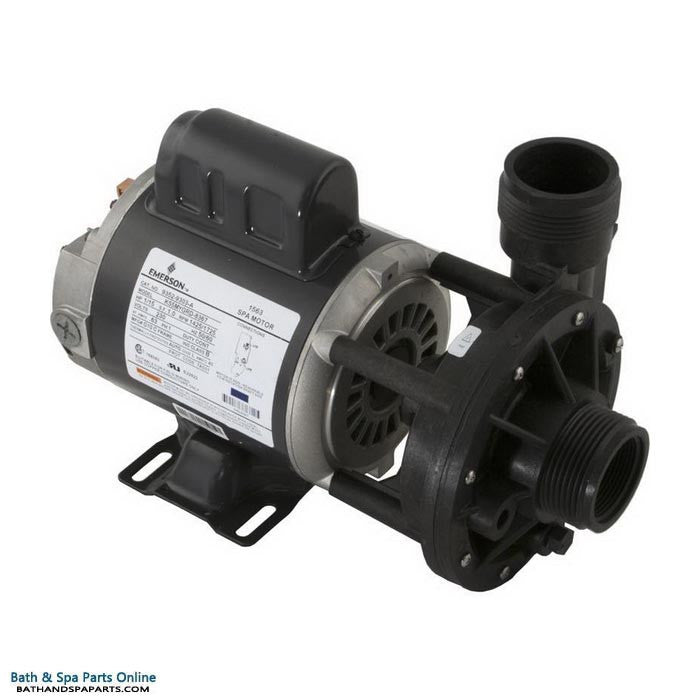

Gecko AquaFlo CMHP 1/15 HP [1.3A] [115v] Circ Pump (02093000-2010)
Pumps | |
Aquaflo by Gecko | |
02093001-2010 | |
34-402-1142 | |
02093001-2010, 02093001-2010, 02093007-2, 301637, 5127-003, 5200-259, 6000-907, K55MYGRD8367, K55MYRLT-2224, PRC1168 | |
Circulation Pump | |
1/15 HP | |
48 Frame - Thru-Bolt | |
1-Speed | |
230V | |
60 Hz | |
1-1/2" MBT | |
1-1/2" FPT/MBT | |
3, 6, 9 o`clock |
$9.88 STANDARD SHIPPING WITHIN THE CONTIGUOUS USA.
Gecko AquaFlo CMHP 1/15 HP [1.3A] [115v] Circ Pump (02093000-2010)
Gecko Alliance has 25 years of experience in the design and manufacturing of interfaces and controls of all types, and it has made them experts in product interaction and user behavior. Simplicity, intuition, elegance and performance are not only starting points of design projects but driving forces of Gecko creativity. Gecko designs meaningful products, creates great user experiences and builds strong and long-lasting relationships with their customers. That is why Gecko makes the perfect partner for the spa user!
Aqua-Flo by Gecko's Circ-Master pump takes 24-hour filtration to a new level, delivering the highest GPM of any recirculation pump on the spa industry. Higher GPM allows the Circ-Master to operate a high-flow heating system resulting in increased heating efficiency and up to four times the filtration.
Spa Pump Features:
- 48 frame, continuous-duty construction with front and rear, permanently lubricated ball bearings for extended motor life.
- Carbon-graphite self-lubricating seal designed for continuous duty operation.
- 1-1/2" suction and discharge.
- Quick release compression fittings allow for easy installation or maintenance.
- Available in side discharge and center discharge models.
- Available with 115v and 230v motors.
Specifications:
- Complete Pump Type: Circulation Pump
- Speed: 1 Speed (1-Spd)
- Motor Voltage: 230v
- Drain Plug Location: 3,6,9 o`clock
- Pump to Motor Foot Types: 15
- Suction Style: Center
- Suction Connection (Physical Dimension): 1-7/8"id, 2-7/16"od
- Suction Connection Type: Female Pipe Thread (fpt), Male Buttress Thread (mbt)
- Suction Pipe Size: 1-1/2"
- Discharge Style: Side
- Discharge Connection (Physical Dimension): 2-7/16"od
- Discharge Connection Type: Male Buttress Thread (mbt)
- Discharge Pipe Size: 1-1/2"
- Horsepower: 1/15hp
- Motor Frame: 48 Frame Thru-Bolt
- Motor Amperage/Wattage: 0.6A
- Manufacturer: AquaFlo/Gecko
- Pump Model: Circ-Master CMHP
- Volute Fastening Type: 8 Screws
WHY USE GECKO PRODUCTS? |
||
At Gecko, understanding the spa users environment and expectations is key in the process of designing and making the perfect control systems, intuitive keypads, powerful but efficient pumps and value-added accessories for spas. When a user touches a button, presses a key or clicks on a link, he already expects how his spa, the product of Gecko customers, should respond to his commands. He is validating, at each interaction, the quality of the experience he associates with his spa. Gecko Alliance has been providing that high level quality products and service to their customers for almost three decades. Their products are some of the most reliable products made in the industry today. Gecko Alliance products are a great affordable alternative to Balboa Water Group products. |
